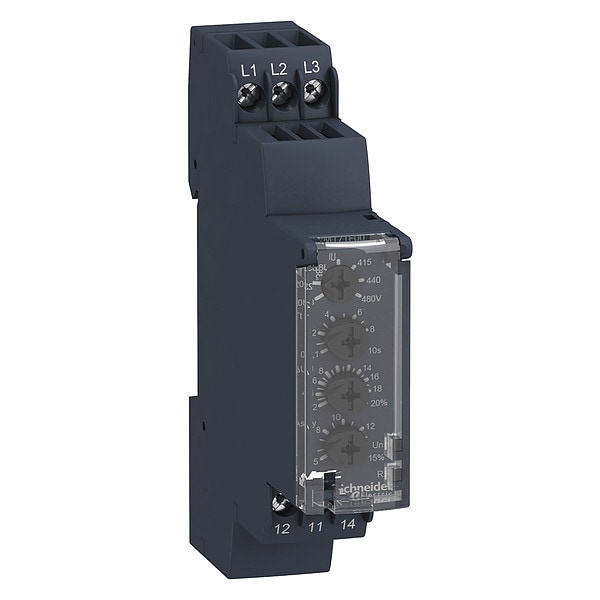

Relé monofásico, 250VCA/CC de voltaje en la bobina, 1 contacto normalmente abierto.
| Item | Single Phase Relay |
|---|---|
| Coil Volts | 250VAC/DC |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Power Consumption - Relay | 1 W; 0-3 VA |
| Body Width - Relay | 17.5 mm |
| Features | For Power On LED (Green); For Relay On LED (Yellow); Non Reversible Polarity On Dc Supply; Overvoltage Or Undervoltage Detection; Self-Powered |
| Standards | EN/IEC 60255-6; GL; UL; GOST; CSA; C-tick; CE |
| Operating Temp. Range | -20-50°C |
| Switching Voltage | 250 V AC/DC |
| Current Rating | 5 A |
| Switching Power | 1250 VA |
| Pollution Degree | 3 IEC 60664-1 |
| Quality Labels | CE |
| Electromagnetic Compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Width | 0.69 in |
| Immunity To Microbreaks | 20 msec |
| Measurement Accuracy | +/- 10% of the full scale value |
| Measurement Error | Less than 1% over the whole range with voltage variation; 0.2%/°C with temperature variation |
| Polarity | Non reversible polarity on DC supply |
| Maximum Switching Current | 5 A AC/DC |
| Ambient Air Temperature For Operation | -4 to 122°F |
| Repeat Accuracy | +/-, +/- 0.5% input and measurement circuit delay, 1% time |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Nominal Output Current | 5 A |
| Compatibility Code | RM17 |
| Relative Humidity | 95% 131°F IEC 60068-2-30 |
| Delay At Power Up | 1000 ms DC; 500 ms AC |
| Product Certifications | CSA, UL, GOST, C-tick, GL |
| Utilisation Category | AC-12 IEC 60947-5-1; AC-13 IEC 60947-5-1; AC-14 IEC 60947-5-1; AC-15 IEC 60947-5-1; DC-12 IEC 60947-5-1; DC-13 IEC 60947-5-1; DC-14 IEC 60947-5-1 |
| Maximum Measuring Cycle | 150 ms measurement cycle as true rms value |
| Dielectric Test Voltage | 2 kV AC 50 Hz, 1 min IEC 60255-5; 2 kV AC 50 Hz, 1 min IEC 60664-1 |
| Supply Voltage Limits | 50 to 270 V AC/DC |
| Connections - Terminals | Screw terminals, 1 x 0.5 to 1 x 4 mm² AWG 20 to AWG 11) solid without cable end; Screw terminals, 2 x 0.5 to 2 x 2.5 mm² AWG 20 to AWG 14) solid without cable end; Screw terminals, 1 x 0.2 to 2 x 2.5 mm² AWG 24 to AWG 12) flexible with cable end; Screw terminals, 2 x 0.2 to 2 x 1.5 mm² AWG 24 to AWG 16) flexible with cable end |
| Reset Time | 1,500 msec |
| Overvoltage Category | III IEC 60664-1 |
| Rated Insulation Voltage | 250 V IEC 60664-1; 400 V IEC 60664-1 |
| Measurement Range | 65 to 260 V voltage AC 50/60 Hz; 65 to 260 V voltage DC |
| Maximum Power Consumption in W | 1 W DC |
| Non-Dissipating Shock Wave | 4 kV IEC 60255-5; 4 kV IEC 60664-1; 4 kV IEC 61000-4-5 |
| Local Signalling | for LED |
| Tightening Torque | 5.31 to 8.85 lbf.in (0.6 to 1 N.m) IEC 60947-1 |
| Product Or Component Type | Voltage control relay |
| Relay Name | RM17UAS |
| Control Circuit Frequency | 50 to 60 Hz +/- 10% |
| Relay Monitored Parameters | Overvoltage or undervoltage detection; Self-powered |
| Electrical Durability | 100000 cycles |
| Power Consumption in VA | 0 to 3 VA AC |
| IP Degree Of Protection | IP20 IEC 60529 terminals; IP30 IEC 60529 casing) |
| Product Specific Application | For single-phase and DC supply |
| Minimum Switching Current | 10 mA 5 V DC |
| Operating Position | Any position without derating |
| Vibration Resistance | 0.35 mm 5 to 57.6 Hz)IEC 60068-2-6; 1 gn 57.6 to 150 Hz)IEC 60255-21-1 |
| Insulation Resistance | Greater than 500 MOhm 500 V DC IEC 60255-5; Greater than 500 MOhm 500 V DC IEC 60664-1 |
| Time Delay | Adjustable 0.1 to 10 s, 0 + 10% on crossing the threshold |
| Mounting Support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Mechanical Durability | 30,000,000 cycle |
| Operating Rate | Less than or Equal to 360 operations/hour full load |
| Housing Material | Self-extinguishing plastic |
| Shock Resistance | 5 gn IEC 60068-2-27 |
| Rated Supply Voltage | 110 to 240 V AC/DC 50/60 Hz +/- 10% |
| Hysteresis | 5 to 20% threshold setting |
| Relay Type | Voltage control relay |
| Status Indicator | No Indicator |
| Package Quantity | 1 |
