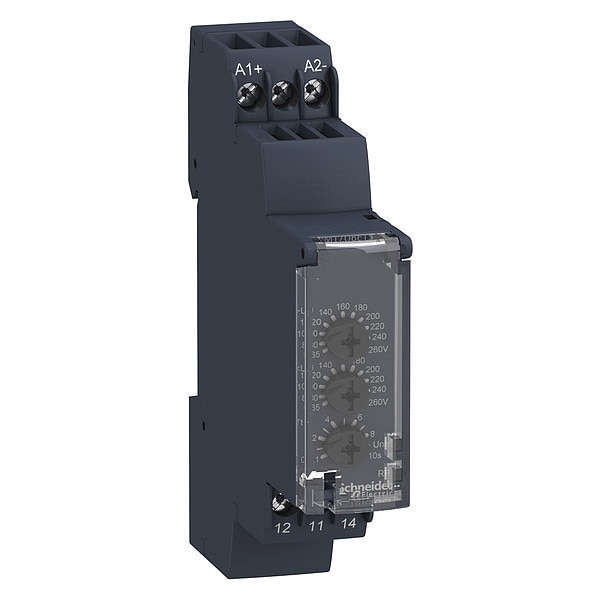

Relé de fase única, 250VAC/DC de voltaje de bobina, 1 contacto normalmente abierto (C/O)
| Item | Single Phase Relay |
|---|---|
| Coil Volts | 250VAC/DC |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Power Consumption - Relay | 1 W; 0-3 VA |
| Body Width - Relay | 17.5 mm |
| Features | Overvoltage And Undervoltage Detection; For Power On LED (Green); For Relay On LED (Yellow); Non Reversible Polarity On Dc Supply; Self-Powered; Overvoltage And Undervoltage Detection |
| Standards | EN/IEC 60255-6; UL; GL; GOST; C-tick; CSA; CE |
| Switching Power | 1250 VA |
| Current Rating | 5 A |
| Switching Voltage | 250 V AC/DC |
| Operating Temp. Range | -20-50°C |
| Status Indicator | No Indicator |
| Package Quantity | 1 |
