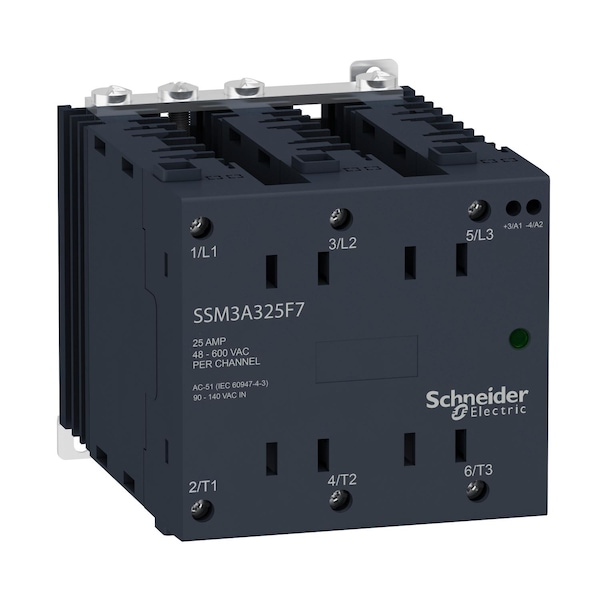

Relé monofásico, Relés modulares de estado sólido Harmony, 25A, montaje en riel DIN, conmutación de voltaje cero, entrada de 4 a 32V DC, salida de 48 a 600V AC.
| Item | Ssr3 Ch,25A@48-600VAC,ZC,4-32 VDC |
|---|---|
| Standards | CSA C22.2 No 14 || IEC 60950-1 || UL 508 |
| Phase | 3 phase |
| Dv/Dt | 500 V/µs |
| Maximum Voltage Drop | <1.35 V on-state |
| Switching Voltage | 4 V DC turn-on || 1 V DC turn-off |
| Output Voltage | 48 to 600 V AC |
| Absolute Maximum Voltage | 1,100 V |
| [Uc] Control Circuit Voltage | 4 to 32 V DC |
| Insulation Resistance | 1000 MOhm |
| Product Or Component Type | solid state relay up to 30 A |
| Surge Current | 286 A 20 ms 50 Hz || 300 A 16.6 ms 60 Hz |
| Number Of Channels | 3 |
| Line Rated Current | 25 A |
| Ambient Air Temperature For Storage | -40-100°C |
| Ambient Air Temperature For Operation | -20-80°C |
| Connections - Terminals | screw terminals 0.2 to 1.3 mm², AWG 24 to AWG 16) input || screw terminals 1.3 to 5.3 mm², AWG 16 to AWG 10) output |
| Marking | CE, EAC || CSA || UL |
| Load Current | 0.1 to 25 A |
| Input Current Limits | 22 to 28 mA |
| Ip Degree Of Protection | IP20 |
| Pollution Degree | 2 |
| Solid State Output Type | zero voltage switching |
| Product Certifications | CSA || UL || EAC |
| Mounting Support | symmetrical DIN rail |
| Output switching mode | zero voltage switching |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Maximum Horse Power Rating | 1 hp 40°C 240 V AC || 2 hp 40°C 380 V AC || 3 hp 40°C 480 V AC |
| Maximum I²T For Fusing | 410 A².s for 10 ms at 50 Hz || 374 A².s for 8.3 ms at 60 Hz |
| Local Signalling | for input status LED (green) |
| Overvoltage Category | III |
| Response Time | 0.5 cycle (turn-on) || 0.5 cycle (turn-off) |
| Tightening Torque | 0.6 to 0.7 N.m for input || 1.36 to 1.7 N.m for output |
| Dielectric Strength | 4 kV AC for input/output || 4 kV AC for input or output to case |
| Capacitance Unbalance | 8 pF (for input/output) |
| Maximum Leakage Current | 0.25 mA off-state |
| Device Short Name | SSM3 |
| Range of Product | Harmony Solid State Relays |
| Package Quantity | 1 |
