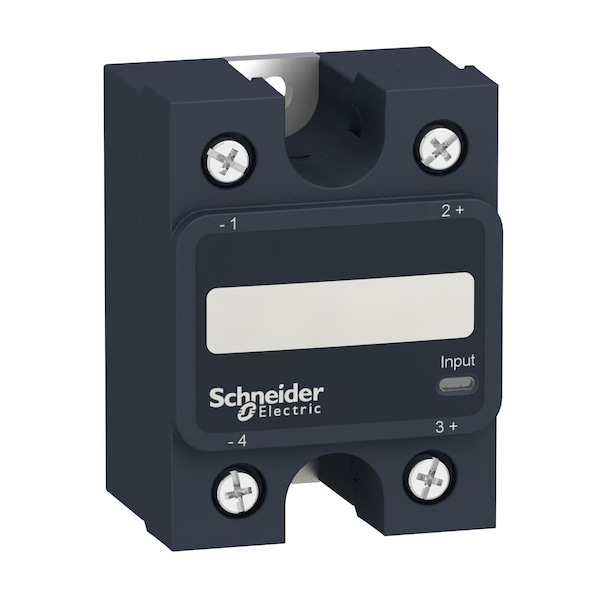

Relevador de fase única, Relevadores de estado sólido Harmony, 10A, montaje en panel, conmutación de voltaje cero, almohadilla térmica, entrada de 90 a 280V AC, salida de 24 a 300V AC.
| Item | Ssr1p Panel Mnt,10A@300VAC,ZC,90-280VDC |
|---|---|
| Standards | UL 508 || EN/IEC 62314 || EN/IEC 60950-1 || CSA C22.2 No 14-13 |
| Phase | 1 phase |
| Line Rated Current | 10 A |
| Dv/Dt | 500 V/µs |
| Protection Device Type | type 1 - 13 A miniature circuit breaker B || type 2 - 10 A miniature circuit breaker B |
| Response Time | 30 ms (turn-off) || 25 ms (turn-on) |
| Marking | EAC || UL || CE || CSA |
| Maximum Horse Power Rating | 0.5 hp 120 V AC || 1 hp 240 V AC |
| Ip Degree Of Protection | IP20 |
| Surge Current | 120 A 16.6 ms |
| Output Voltage | 24 to 300 V AC |
| Output switching mode | zero voltage switching |
| Capacitance Unbalance | 8 pF (for input/output) |
| Input Current Limits | 5 to 10 mA |
| Thermal Impedance | 0.48°C-in²/W @ 25 psi |
| Provided Equipment | thermal pad |
| Absolute Maximum Voltage | 600 V |
| Solid State Output Type | zero voltage switching || SCR output |
| Connections - Terminals | screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mm², AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mm², AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output |
| [Uc] Control Circuit Voltage | 90 to 280 V AC |
| Pollution Degree | 2 |
| Mounting Support | panel |
| Load Current | 0.15 to 10 A |
| Maximum Leakage Current | 1 mA off-state |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Thermal Resitance | junction to case |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Product Certifications | EAC || CSA || UL || CE |
| Overvoltage Category | III |
| Ambient Air Temperature For Operation | -40-80°C |
| Local Signalling | LED, green input |
| Tightening Torque | 1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output |
| Dielectric Strength | 4 kV AC for input/output || 4 kV AC for input or output to case |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV output to case || 6 kV input to output |
| Ambient Air Temperature For Storage | -40-125°C |
| Maximum Voltage Drop | <1.15 V on-state |
| Product Or Component Type | solid state relay up to 10 A |
| Maximum Switching Voltage | 10 V AC turn-off |
| Maximum I²T For Fusing | 60 A².s for 8.33 ms at 60 Hz || 66 A².s for 10 ms at 50 Hz |
| Minimum Switching Voltage | 90 V AC turn-on |
| Device Short Name | SSP1 |
| Device Presentation | complete product |
| Range of Product | Harmony Solid State Relays |
| Package Quantity | 1 |
