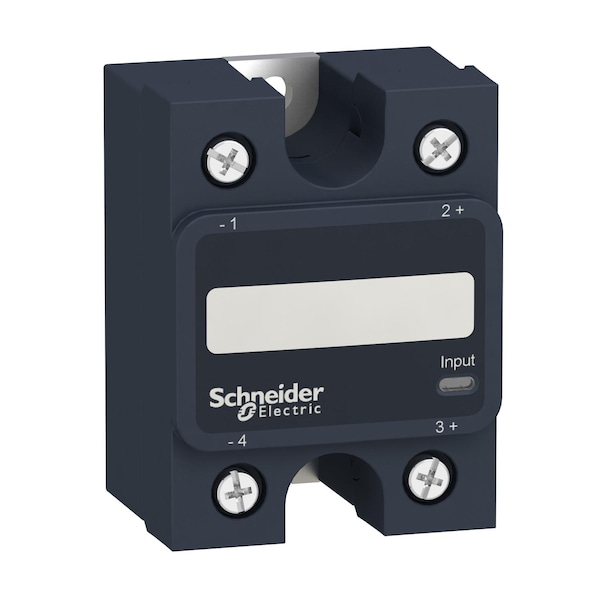

Relé de fase única, Harmony Solid State Relays, 12A, montaje en panel, conmutación de CD, almohadilla térmica, entrada de 3.5 a 32V CD, salida de 1 a 150V CD.
| Item | Ssr1p Panel Mnt,12A@150VDC,3.5-32VDC,In |
|---|---|
| Standards | EN/IEC 62314 || UL 508 || EN/IEC 60950-1 || CSA C22.2 No 14-13 |
| Phase | 1 phase |
| Thermal Impedance | 0.48°C-in²/W @ 25 psi |
| Response Time | 0.1 ms (turn-on) || 0.1 ms (turn-off) |
| Product Or Component Type | solid state relay up to 20 A |
| Solid State Output Type | DC switching || Mosfet output |
| Local Signalling | LED, green input |
| Marking | CE || UL || EAC || CSA |
| Ip Degree Of Protection | IP20 |
| [Uc] Control Circuit Voltage | 3.5 to 32 V DC |
| Maximum Switching Voltage | 1 V DC turn-off |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Input Current Limits | 10 to 15 mA |
| Connections - Terminals | screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mm², AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mm², AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output |
| Tightening Torque | 1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output |
| Dielectric Strength | 2.5 kV AC for input/output || 2.5 kV AC for input or output to case |
| Minimum Switching Voltage | 3.5 V DC turn-on |
| Provided Equipment | thermal pad |
| Load Current | 0.001 to 12 A |
| Overvoltage Category | III |
| Output Voltage | 1 to 150 V DC |
| Mounting Support | panel |
| Ambient Air Temperature For Operation | -40-80°C |
| Device Short Name | SSP1 |
| Ambient Air Temperature For Storage | -40-125°C |
| Maximum Leakage Current | 0.3 mA off-state |
| Surge Current | 31 A 10 ms |
| Pollution Degree | 2 |
| Maximum Voltage Drop | <2.8 V on-state |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV output to case |
| Line Rated Current | 12 A |
| Capacitance Unbalance | 50 pF (for input/output) |
| Output switching mode | DC switching |
| Thermal Resitance | junction to case |
| Protection Device Type | type 1 - 10 A miniature circuit breaker B || type 2 - 6 A miniature circuit breaker B |
| Product Certifications | CE || UL || EAC || CSA |
| Device Presentation | complete product |
| Range of Product | Harmony Solid State Relays |
| Package Quantity | 1 |
