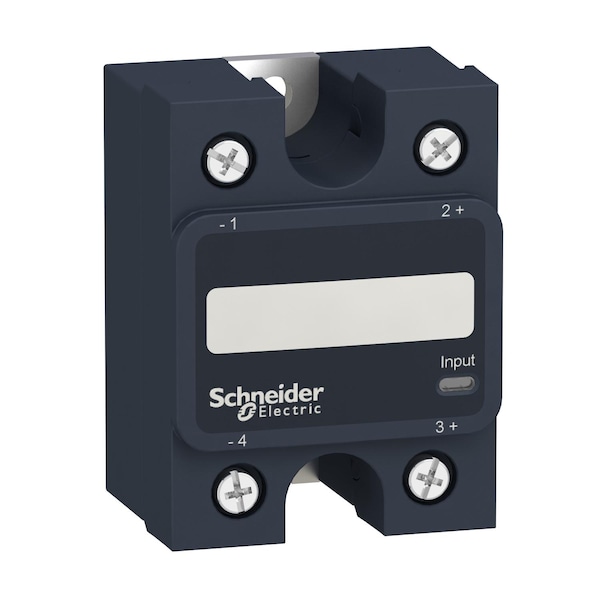

Relé monofásico, Relay de estado sólido Harmony, 90A, montaje en riel DIN, conmutación de voltaje cero, entrada de 4 a 32V DC, salida de 48 a 660V AC.
| Item | Ssr1p Panel Mnt,90A@660VAC,ZC,4-32VDC,I |
|---|---|
| Standards | CSA C22.2 No 14-13, UL 508, IEC 62314, IEC 60950-1 |
| Phase | 1 phase |
| Response Time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Maximum Switching Voltage | 1 V DC turn-off |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV output to case, 6 kV input to output |
| Device Short Name | SSP1 |
| Absolute Maximum Voltage | 1,200 V |
| Range of Product | Harmony Solid State Relays |
| Dv/Dt | 500 V/µs |
| Connections - Terminals | screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input, screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input, screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output, forked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, ring lugs 11.7 x 4.5 mm output |
| Protection Device Type | type 1 - 63 A miniature circuit breaker B, type 2 - 50 A miniature circuit breaker B |
| Ambient Air Temperature For Operation | -40-80°C |
| Overvoltage Category | III |
| Maximum Horse Power Rating | 1.5 hp 120 V AC, 3 hp 240 V AC, 7.5 hp 480 V AC |
| Load Current | 0.15 to 90 A |
| Dielectric Strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| Line Rated Current | 90 A |
| Pollution Degree | 2 |
| Maximum Voltage Drop | <1.15 V on-state |
| Thermal Resitance | junction to case |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Maximum I²T For Fusing | 5976 A².s for 8.33 ms at 60 Hz, 6560 A².s for 10 ms at 50 Hz |
| Input Current Limits | 7 to 12 mA |
| Minimum Switching Voltage | 4 V DC turn-on |
| Product or Component Type | solid state relay up to 125 A |
| Output Switching Mode | zero voltage switching |
| Ip Degree of Protection | IP20 |
| Local Signalling | LED, green input |
| Tightening Torque | 1.5...1.7 N.m for input, 2...2.2 N.m for output |
| Device Presentation | complete product |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Surge Current | 1200 A 16.6 ms |
| Solid State Output Type | zero voltage switching, SCR output |
| Mounting Support | panel |
| Maximum Leakage Current | 1 mA off-state |
| Marking | CE, UL, CSA, EAC |
| Capacitance Unbalance | 8 pF (for input/output) |
| Ambient Air Temperature For Storage | -40-125°C |
| [Uc] Control Circuit Voltage | 4 to 32 V DC |
| Output Voltage | 48 to 660 V AC |
| Product Certifications | UL || CSA || EAC || CE |
| Package Quantity | 1 |
