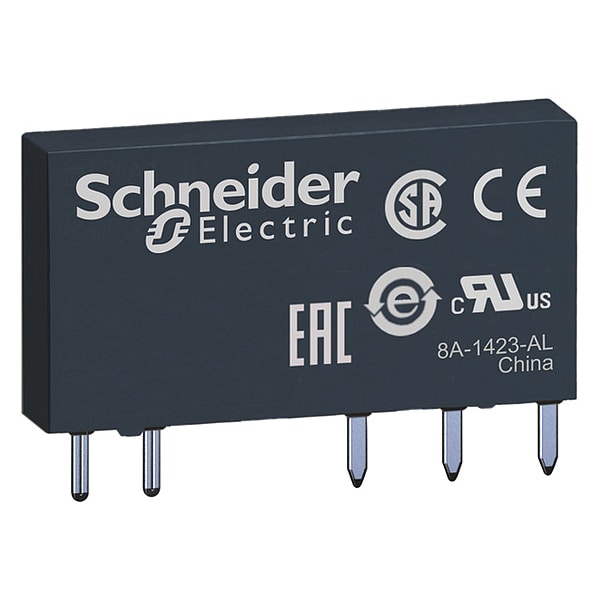

Relé de interfaz delgado, 24V DC de voltaje de bobina, 5 pines, 1 C/O
| Item | Slim Interface Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 6A @ 250V |
| DC Contact Rating - Relay | 6 A @ 24 V |
| Number of Pins - Relay | 5 |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.17 W |
| Contact Material | Gold Plated Silver Alloy |
| Body Height - Relay | 1.1 in |
| Body Width - Relay | 0.2 in |
| Body Depth - Relay | 0.73 in |
| Overall Height - Relay | 1.1 in |
| Standards | CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed |
| Status Indicator | No Indicator |
| Base Type | Square |
| Response Time | 12 msec |
| Electrical Connection | Plug-In |
| Socket Included | No Socket |
| Input Voltage | 24 V DC |
| Contact Form | SPDT |
| Sealing | Sealed |
| Minimum Switching Voltage | 24 V |
| Dielectric Strength | 1,000V AC Between Contacts, 4,000V AC Between Coil and Contact |
| Mounting Style | Printed Circuit Board & Socket |
| Contact Rating (AC) | 6 A @ 250V |
| Mechanical Operating Durability | 10,000,000 |
| Power Consumption | 0.17 W |
| For Use With | Hard-Wired Logic Automated Systems |
| Current Rating | 6 A |
| Contact Rating (DC) | 6 A @ 24 V |
| Flat Pin Width | Not Applicable |
| Body Width | 0.19 in |
| Minimum Operating Temperature | -40 deg F |
| Number of Pins | 5 |
| Body Height | 1.1 in |
| Pin Shape | Flat |
| Coil Voltage | 24 V DC |
| Maximum Switching Voltage | 277 V |
| Push-To-Test Method | No Button |
| Body Depth | 0.72 in |
| Electrical Operating Durability | 60,000 |
| Weight | 0.16 oz |
| Overall Depth | 0.74 in |
| IP Rating | IP40 |
| Minimum Switching Current | 1 mA |
| Maximum Operating Temperature | 131 deg F |
| Operating Temp. Range | -40-55°C |
| Switching Power | Max 1500 VA; 50 W; Min 24 mW |
| Operating Time | 5 ms reset || 12 ms |
| Protection Category | RTIII |
| Series | RSL; slim interface relay |
| Item - Relay | Slim Interface Relay |
| Switching Voltage | 24/277V |
| Coil Resistance | 3,390 ohms |
| Package Quantity | 1 |
