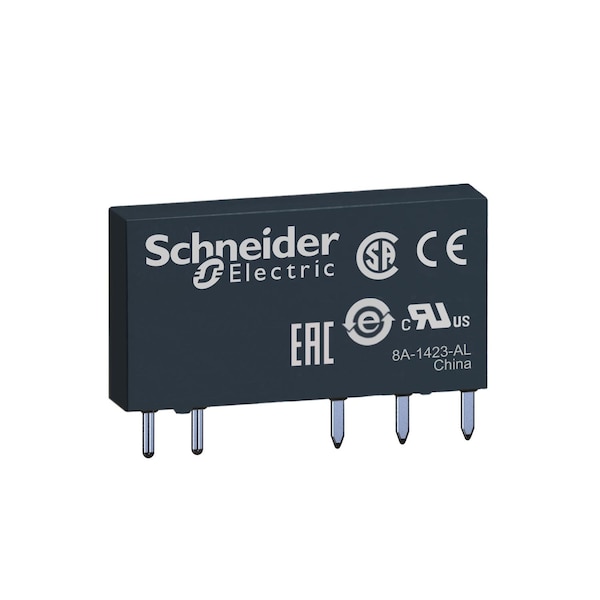

Relé de interfaz delgado, Relés electromecánicos Harmony, 6A, 1CO, estándar, 48V DC.
| Item | Slim interface plug-in relay,6 A,1 CO, |
|---|---|
| Standards | CSA C22.2 No 14, IEC 61810-1, UL 508 |
| Depth | 18.5 mm |
| Height | 28 mm |
| Width | 5 mm |
| Contact Operation | standard |
| Minimum Switching Capacity | 120 mW |
| Dielectric Strength | 1000 V AC between contacts, 4000 V AC between coil and contact |
| Device Short Name | RSL |
| [Ithe] Conventional Enclosed Thermal Current | 6 A -40-55°C |
| Minimum Switching Current | 10 mA |
| Protection Category | RTIII |
| Maximum Switching Capacity | 1500 VA, 50 W |
| Terminals Description Iso N°1 | CO, OC |
| Phenolic Free Solution | Yes |
| Maximum Switching Voltage | 277 V |
| Shape of Pin | flat |
| Vibration Resistance | +/- 1 mm 10-55 Hz)IEC 60068-2-6 |
| Device Presentation | complete product |
| Operating Rate | <= 360 cycles/hour under load, <= 18000 cycles/hour no-load |
| [Uc] Control Circuit Voltage | 48 V DC |
| Minimum Switching Voltage | 12 V |
| Product or Component Type | plug-in relay |
| Operating Time | 5 ms reset, 12 ms |
| Ip Degree of Protection | IP40 conforming to IEC 60529 |
| Operating Position | any position |
| [Ui] Rated Insulation Voltage | 250 V IEC, 277 V cUL |
| Mounting Support | socket or PCB |
| Series Name | interface relay |
| Status Led | without |
| Average Coil Consumption | 0.21 W |
| Contacts Type And Composition | O, 1 C |
| Rated Operational Voltage Limits | 36...67.2 V DC |
| Load Current | 6 A 250 V AC 0.5 mm mounting distance |
| Drop-Out Voltage Threshold | >= 0.05 Uc |
| Control Type | without push-button |
| Range of Product | Harmony Electromechanical Relays |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC |
| Electrical Durability | 60000 cycles, 6 A at 250 V, AC-1 C/O |
| [Ie] Rated Operational Current | 6 A AC-1/DC-1)IEC/UL |
| Mechanical Durability | 10,000,000 cycle |
| Average Resistance | 10600 Ohm at 23°C +/- 15 % |
| Ambient Air Temperature For Operation | -40-55°C |
| Contacts Material | Silver alloy |
| Ambient Air Temperature For Storage | -40-70°C |
| Test Levels | level A group mounting |
| Shock Resistance | 5 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27 |
| Package Quantity | 1 |
