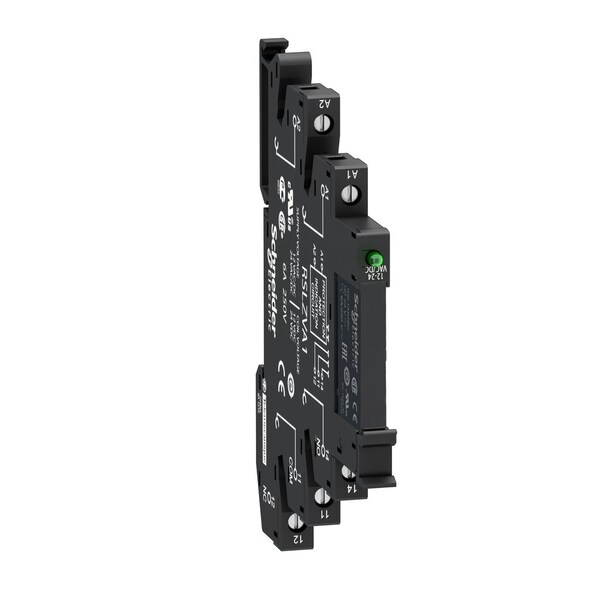

Relé de interfaz delgado pre-ensamblado, 6 A, 48V AC/DC de voltaje de bobina, 1 contacto normalmente abierto.
| Item | Slim interface relay pre-assembled,6 A, |
|---|---|
| Coil Volts | 48V AC/DC |
| AC Contact Rating - Relay | 6A @ 250V AC |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | DIN Rail |
| Power Consumption - Relay | 0.17 W |
| Contact Material | Silver Alloy |
| Body Height - Relay | 78.6 mm |
| Body Width - Relay | 6.2 mm |
| Body Depth - Relay | 95 mm |
| Features | Status LED |
| Standards | CSA C22.2 No 14 508; EN/IEC 61810-1; CE; GOST |
| Protection Category | RTIII |
| Series | RSL; interface relay |
| Current Rating | 6 A 1 C/O AC-1/DC-1)IEC/UL |
| Coil Resistance | 10,600 ohms |
| Pin Shape | Flat |
| Switching Power | Max 1500 VA; 150 W; Min 120 mW |
| Operating Time | 5 ms reset || 12 ms |
| Switching Voltage | 12/277V |
| Dielectric Strength | 1000 V AC between contacts; 4000 V AC between coil and contact |
| Operating Temp. Range | -40-55°C |
| Terminals Description Iso N°1 | CO, OC |
| Ambient Air Temperature For Operation | -40-55°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC |
| Maximum Switching Capacity | 1500 VA, 150 W |
| Average Coil Consumption | 0.17 W, DC |
| Vibration Resistance | 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6, 5 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6 |
| Range of Product | Harmony Electromechanical Relays |
| Drop-Out Voltage Threshold | >= 0.05 Uc |
| Test Levels | level A group mounting |
| Electrical Durability | 60000 cycles resistive, 6 A 250 V, AC-1 |
| Minimum Switching Current | 100 mA |
| Ip Degree of Protection | IP40 conforming to IEC 60529 |
| Average Resistance | 10600 Ohm DC 23°C +/- 10 % |
| Load Current | 6 A 250 V AC 0.5 mm mounting distance |
| Status Led | with |
| Input Voltage | 48 V AC/DC 43.2...57.6 V) |
| Ambient Air Temperature For Storage | -40-85°C |
| Minimum Switching Capacity | 120 mW |
| Maximum Switching Voltage | 277 V |
| [Ui] Rated Insulation Voltage | 250 V IEC, 277 V cUL |
| Product or Component Type | plug-in relay |
| Tightening Torque | < 0.5 N.m M2.5 |
| Mechanical Durability | 10,000,000 cycle |
| Operating Position | any position |
| Series Name | interface relay |
| Connections - Terminals | screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end |
| Control Type | without push-button |
| Fixing Mode | plastic compression spring |
| Shock Resistance | 10 gn 11 ms) in operation IEC 60068-2-27, 5 gn 11 ms) not operating IEC 60068-2-27 |
| Contact Operation | standard |
| Contact Terminal Arrangement | Separate |
| [Ithe] Conventional Enclosed Thermal Current | 6 A -40-55°C |
| Device Presentation | complete product |
| Minimum Switching Voltage | 12 V |
| Marking | CE |
| Phenolic Free Solution | Yes |
| Operating Rate | <= 72000 cycles/hour no-load, <= 360 cycles/hour under load |
| Device Short Name | RSL |
| [Uc] Control Circuit Voltage | 48 V AC/DC |
| Package Quantity | 1 |
