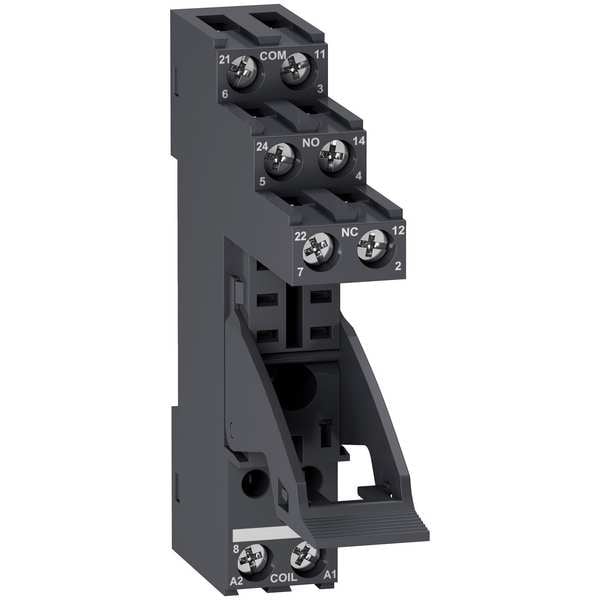

Socket 250VAC, 10A para relé Rxg2, paquete de 10
| Item - Relay | Relay Socket |
|---|---|
| Socket Type - Relay | Standard |
| Base Style - Relay Socket | Square |
| Contact Form - Relay Socket | DPDT |
| Mounting - Relay | Plug In |
| Electrical Connection - Relay Socket | Screw |
| Number of Pins - Relay | 8 |
| Socket Code | K |
| Contact Rating - Relay Socket | 5A @ 250V AC |
| Color | Black |
| Item | Relay Socket |
| Width | 0.62 in |
| Depth - Relay Socket | 3.03 in |
| Width - Relay Socket | 0.62 in |
| Socket Type | Finger Safe, Elevator |
| Number of Pins | 8 |
| Standards | CE Certified, CSA Certified, DNV-GL, EAC, UL Listed |
| Depth | 2.87 in |
| Height - Relay Socket | 2.44 in |
| Status Indicator | None |
| Minimum Operating Temperature | -40 deg F |
| IP Rating | IP20 |
| Height | 3.05 in |
| Electrical Connection | Screw |
| Contact Terminal Arrangement | Separate |
| Maximum Operating Temperature | 158 deg F |
| Contact Rating (AC) | 5 A @ 250 V |
| Current Rating | 5 A |
| Contact Form | DPDT |
| Flat Pin Width | 0.09 in |
| Base Style | Square |
| Pin Shape | Flat |
| Number of Terminals | 8 |
| Mounting Style | DIN Rail |
| Compatible Relays | Harmony(TM) RXG Series |
| [Ue] Rated Operational Voltage | 250 V IEC || 300 V UL |
| Product Compatibility | plug-in relay RXG 2 C/O |
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -40-85°C |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Operation | -40-70°C |
| [Ui] Rated Insulation Voltage | 250 V |
| Screw Type | M3 |
| Connections - Terminals | screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || screw terminals, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end || screw terminals, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV between coil and contact with reinforced insulation || 4 kV between contacts with basic insulation || 4 kV between poles with basic insulation || 4 kV between terminals and DIN rail with basic insulation |
| Overvoltage Category | III |
| Product Or Component Type | socket |
| Dielectric Strength | 5 kV between coil and contact with reinforced insulation || 2.5 kV between contacts with basic insulation || 3 kV between poles with basic insulation || 3 kV between terminals and DIN rail with basic insulation |
| Relative Humidity | 10-85 % |
| Product Certifications | EAC || CE || CSA || UL || DNV-GL |
| Line Rated Current | 5 A |
| Package Quantity | 10 |
