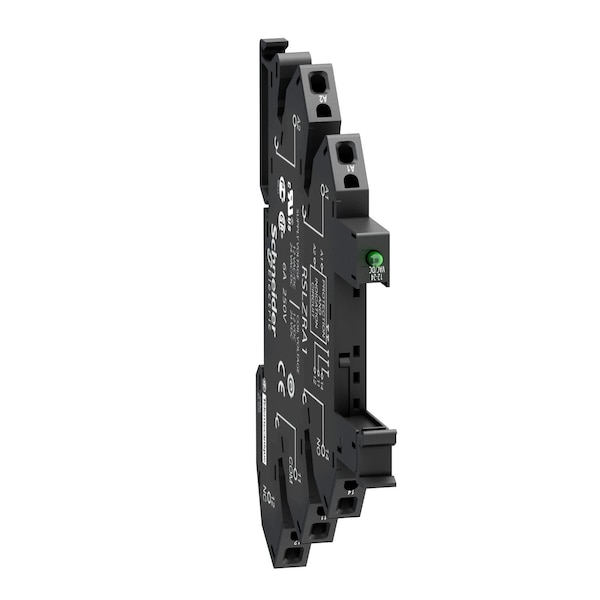

Socket, relés electromecánicos Harmony, para relés RSL1, terminales de resorte, 48...60V AC DC.
| Standards | IEC 61984 || UL 508 |
|---|---|
| Item | Spring socket equipped with LED and prot |
| Dielectric Strength | 2500 V |
| Overvoltage Category | III |
| Product Certifications | CSA || GOST |
| Pollution Degree | 3 |
| [Ith] Conventional Free Air Thermal Current | 6 A |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Or Component Type | socket |
| Device Short Name | RSLZ |
| [Uimp] Rated Impulse Withstand Voltage | 3.6 kV |
| Fixing Mode | plastic compression spring 35 mm symmetrical DIN rail) |
| Connections - Terminals | spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end |
| Marking | CE |
| Switching Voltage | 48 V AC/DC || 60 V AC/DC |
| Device Presentation | basic element |
| Group Of Product | RSL_SPRING_TERS_48-60 |
| Compatibility Code | RSLZ |
| Contact Terminal Arrangement | Separate |
| Cad Overall Height | 78.6 mm |
| Shape Of Pin | flat |
| Cad Overall Depth | 101 mm |
| Cad Overall Width | 6.2 mm |
| Clamping Force | 10-40 N |
| Rated Operational Voltage Limits | 54...72 V || 43.2...57.6 V |
| Ambient Air Temperature For Storage | -40-85°C |
| Product Compatibility | plug-in relay RSL 1 C/O 48 V DC || plug-in relay RSL 1 C/O 60 V DC |
| [Ue] Rated Operational Voltage | < 300 V AC |
| Range of Product | Harmony Electromechanical Relays |
| Contacts Type And Composition | O, 1 C |
| Package Quantity | 1 |
