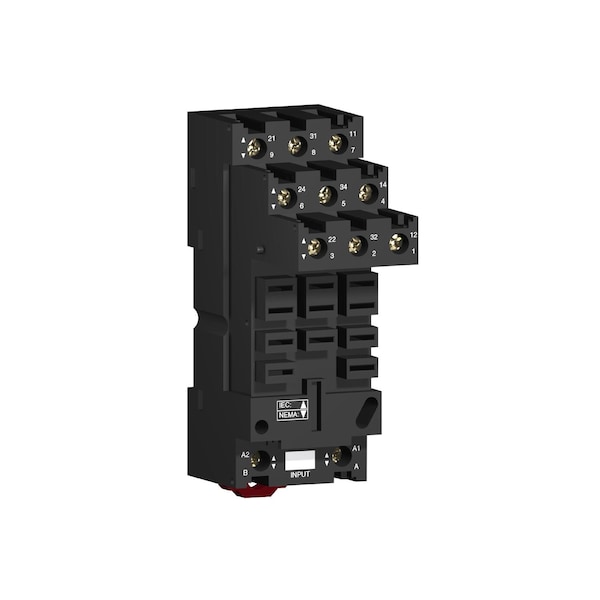

Socket, relevadores electromecánicos Harmony, para relevadores RUMF2 RUMF3, 12A, conectores de tornillo, contacto separado.
| Standards | IEC 61984 |
|---|---|
| Item | Socket RUZ- separate contact -12 A - Less Than 2 |
| Width | 36 mm |
| Product Certifications | CSA || UL |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| [Ue] Rated Operational Voltage | < 250 V |
| Connections - Terminals | connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
| [Ith] Conventional Free Air Thermal Current | 16 A |
| Tightening Torque | < 1 N.m M3.5 |
| Overvoltage Category | III |
| Marking | CE |
| Fixing Mode | by screw panel) || clip-on 35 mm symmetrical DIN rail) |
| Shape Of Pin | flat |
| Device Short Name | RUZ |
| Ambient Air Temperature For Operation | -40-55°C |
| Ambient Air Temperature For Storage | -40-85°C |
| Product Or Component Type | socket |
| Product Compatibility | plug-in relay RUM 2 C/O || plug-in relay RUM 3 C/O |
| Dielectric Strength | 2500 V |
| Pollution Degree | 3 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Contact Terminal Arrangement | Separate |
| Rated Operational Voltage | Less than 250 V |
| Contacts Type And Composition | O, 3 C |
| Range of Product | Harmony Electromechanical Relays |
| Package Quantity | 1 |
