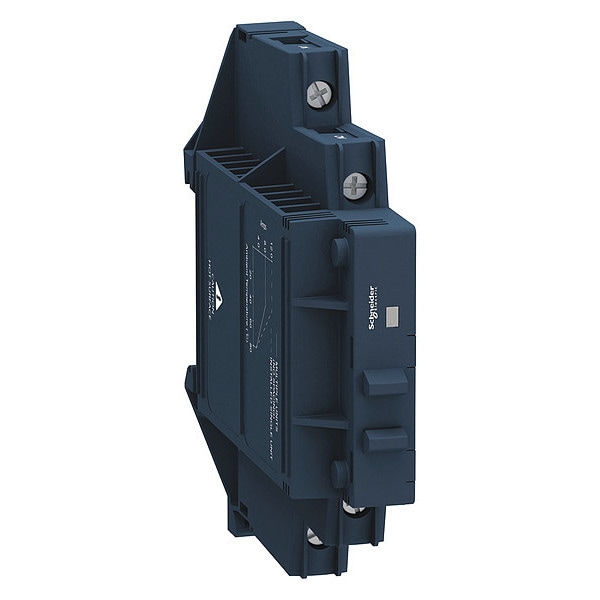

Relevador de estado sólido, 4 a 32VDC, 12A.
| Item - Relay | Solid State Relay |
|---|---|
| Input or Control Voltage | 4 to 32 V DC |
| Output or Controlled Voltage Range | 2 to 100 V DC |
| Max. Output Amps w/Heat Sink | 12 A |
| Heat Sink | Integral |
| Switch Type | MOSFET |
| Contact Form - Relay | SPST-NO |
| Relay Turns On At | Zero Crossing |
| Input Power Consumption (Burden) | 0.4 W |
| Mounting - Relay | DIN Rail |
| Input Voltage | 4 to 32V DC |
| Voltage Output | 2 to 100VDC |
| Item | Solid State Relay |
| Max. Output Amps Without Heat Sink | 12 A |
| Phase | 1 |
| Mounting | DIN |
| Green Environmental Attribute | Does not Contain Formaldehyde |
| Standards | CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed |
| Body Width - Relay | 0.72 in |
| Finger Safe | Yes |
| Body Depth - Relay | 3.45 in |
| Turns On At | Zero Cross |
| Case Color | Dark Gray |
| Overall Height - Relay | 3.3 in |
| Max. Output w/Heat Sink | 12 A |
| Body Height - Relay | 3.3 in |
| Input or Control Voltage Range | 4 to 32 VDC |
| Includes | Single Channel |
| Maximum Output Current with Heat Sink | 12 A |
| Switch Configuration | Form A |
| Response Time | 0.6 msec |
| Voltage Type | DC Output |
| Mounting Style | DIN Rail |
| Output Switching Mode | Not Applicable |
| Overall Depth | 3.29 in |
| IP Rating | IP20 |
| Maximum Capacitance | 10 pF |
| Insulation Resistance | 1,000 megaohm |
| Output Voltage Range | 1 to 100 V DC |
| Switch Component Type | MOSFET |
| Body Depth | 3.29 in |
| Body Height | 3.55 in |
| Maximum Switching Voltage | 1 V DC |
| Series | Harmony(TM) SSM Relays |
| Input Current | 9 to 11 mA |
| Status Indicator | Green LED Indicator |
| Maximum Output Current without Heat Sink | 12 A |
| Minimum Operating Temperature | -22 deg F |
| Minimum Switching Voltage | 4 V DC |
| Drop Out Voltage | 0.5 V DC |
| Maximum Operating Temperature | 176 deg F |
| Electrical Phase | Single |
| Electrical Connection | Screw Clamp |
| Current Type | DC |
| Weight | 3.2 oz |
| Body Width | 0.7 in |
| Dielectric Strength | 4,000V AC |
| Device Short Name | SSM |
| Overvoltage Category | III |
| Surge Current | 100 A 10 ms |
| Pollution Degree | 2 |
| Line Rated Current | 12 A |
| Height | 90.3 mm |
| Marking | CE |
| Load Current | 0.0025 to 12 A |
| Number Of Channels | 1 |
| Depth | 83.7 mm |
| Product Or Component Type | solid state relay up to 20 A |
| Local Signalling | for input status LED (green) |
| Ambient Air Temperature For Operation | -30-80°C |
| Output Voltage | 1 to 100 V DC |
| Ip Degree Of Protection | IP20 |
| Mounting Support | symmetrical DIN rail |
| Product Certifications | CSA || UL |
| Resistance | 0.045 Ohm on-state |
| [Uc] Control Circuit Voltage | 4 to 32 V DC |
| Input Current Limits | 9 to 11 mA |
| Maximum Leakage Current | 0.1 mA off-state |
| Absolute Maximum Voltage | 100 V |
| Width | 18 mm |
| Capacitance Unbalance | 10 pF (for input/output) |
| Connections - Terminals | screw terminals 1 x 0.3 to 1 x 1.5 mm², AWG 22 to AWG 16) input || screw terminals 1 x 0.3 to 1 x 2.5 mm², AWG 22 to AWG 14) output |
| Ambient Air Temperature For Storage | -30-100°C |
| Tightening Torque | 0.5 to 0.8 N.m for input || 0.5 to 0.8 N.m for output |
| Flame Retardance | V0 conforming to UL 94 |
| Solid State Output Type | DC switching || Mosfet output |
| Maximum Voltage Drop | <0.5 V on-state |
| Package Quantity | 1 |
