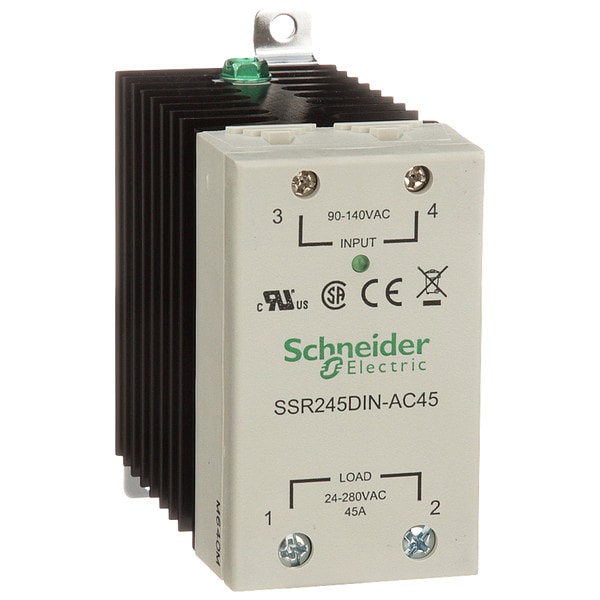

Relevador de estado sólido, 90 a 280VAC, 45A.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Relay | Solid State Relay |
| Input or Control Voltage | 90 to 280 V AC |
| Output or Controlled Voltage Range | 24 to 280 V AC |
| Max. Output Amps w/Heat Sink | 45 A |
| Case Color | Gray/Black |
| Mounting - Relay | Surface, DIN Rail |
| Contact Form - Relay | SPST-NO |
| Item | Solid State Relay |
| Phase | 1 |
| Body Width - Relay | 3.1 in |
| Includes | Integral Heat Sink |
| Relay Turns On At | Zero Crossing |
| Standards | CE Certified, CSA Certified |
| Input Power Consumption (Burden) | 0.3 to 0.6VA |
| Input Voltage | 90 to 280V AC |
| Body Height - Relay | 4.2 in |
| Switch Type | SCR |
| Body Depth - Relay | 1.79 in |
| Finger Safe | Yes |
| Max. Output w/Heat Sink | 45 A |
| Max. Output Amps Without Heat Sink | 45 A (Integral Heat Sink) |
| Heat Sink | Integral |
| Input or Control Voltage Range | 90 to 140VAC |
| Mounting | DIN or Flange |
| Turns On At | Zero Cross |
| Voltage Output | 24 to 280 VAC |
| Overall Height - Relay | 4.2 in |
| Mounting Style | DIN Rail & Panel |
| Depth | 3.1 in |
| Height | 4.2 in |
| Width | 1.79 in |
| Electrical Connection | Screw Clamp |
| Weight | 1.05 lb |
| Maximum Operating Temperature | 176 Degrees F |
| Drop Out Voltage | 1.6 V DC |
| Minimum Switching Voltage | 110 V AC |
| Voltage Type | AC Output |
| Body Height | 3.1 in |
| Electrical Phase | Single |
| Input Current | 15 mA |
| Body Width | 1.79 in |
| Current Type | AC |
| Body Depth | 4.2 in |
| Status Indicator | Green LED Indicator |
| Minimum Operating Temperature | -40 deg F |
| Output Switching Mode | Zero Crossing |
| Maximum Switching Voltage | 18 V AC |
| Output Voltage Range | 24 to 280 V AC |
| Overall Depth | 4.2 in |
| Maximum Output Current without Heat Sink | 45 A |
| Switch Component Type | SCR |
| Series | SSRDIN Series |
| Maximum Output Current with Heat Sink | 45 A |
| Response Time | 10 msec |
| Switch Configuration | Form A |
| Switching Device | SCR output; Zero voltage switching |
| Input Current Limits | 15 mA at 120 V AC typical |
| Mounting Support | Panel; DIN rail |
| Range | Legacy |
| Network Number of Phases | 1 phase |
| Local Signalling | for input status 1 LED (green) |
| Switch Function | SPST |
| Product Certifications | CSA, CE |
| Connections Terminals | Input screw AWG 12); Output screw AWG 8) |
| Switching Voltage | 110 V AC turn-on; 18 V AC turn-off |
| Leakage Current | 10 mA (at off-state) |
| DV/dt | 500 V/µs off-state maximum |
| Ambient Air Temperature for Storage | -40 to 257°F |
| Contacts Type and Composition | NO |
| Output Voltage | 24...280 V AC |
| Maximum I²t for fusing | 1621 A².s 8.3 ms |
| Ambient Air Temperature for Operation | -40 to 176°F |
| Voltage Drop | <1.6 V on-state |
| Surge Current | 625 A 16.6 ms |
| Maximum Peak Voltage | 600 V |
| Tightening Torque | 0.6...0.7 N.m for input; 1.1...1.7 N.m for output |
| Maximum I²t for fusing | 1621 A².s 8.3 ms |
| Package Quantity | 1 |
