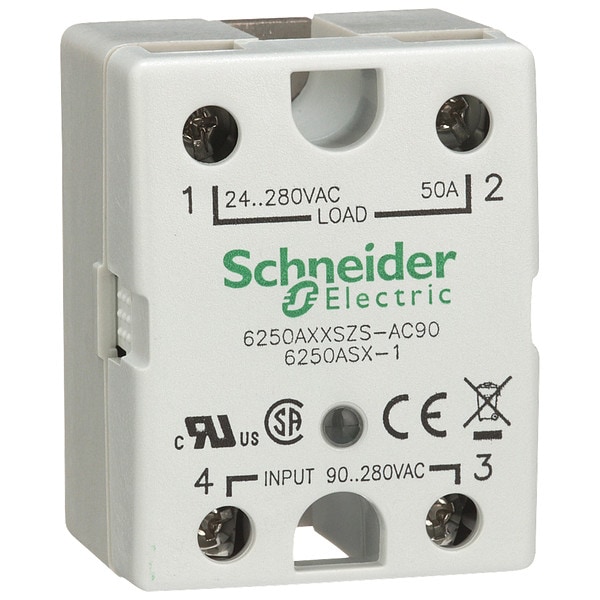

Relé de estado sólido, 90 a 280VCA, 50A.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Relay | Solid State Relay |
| Input or Control Voltage | 90 to 280 V AC |
| Output or Controlled Voltage Range | 24 to 280 V AC |
| Max. Output Amps w/Heat Sink | 50 A |
| Case Color | Gray |
| Mounting - Relay | Surface |
| Contact Form - Relay | SPST-NO |
| Item | Solid State Relay |
| Overall Height - Relay | 1.4 in |
| Turns On At | Zero Cross |
| Switch Type | SCR |
| Finger Safe | Yes |
| Standards | CE Certified, CSA Certified, UL Listed |
| Body Width - Relay | 1.74 in |
| Mounting | Surface |
| Phase | 1 |
| Heat Sink | Not Included |
| Input Voltage | 90 to 280V AC |
| Max. Output Amps Without Heat Sink | 12 A |
| Input or Control Voltage Range | 90 to 280VAC |
| Max. Output w/Heat Sink | 50 A |
| Voltage Output | 24 to 280 VAC |
| Relay Turns On At | Zero Crossing |
| Input Power Consumption (Burden) | 0.2 to 1.0VA |
| Body Height - Relay | 1.4 in |
| Body Depth - Relay | 2.3 in |
| Mounting Style | Panel |
| Depth | 2.3 in |
| Electrical Connection | Screw Clamp |
| Height | 1.39 in |
| Width | 1.85 in |
| Drop Out Voltage | 1.6 V DC |
| Overall Depth | 2.29 in |
| Voltage Type | AC Output |
| IP Rating | IP20 |
| Weight | 3.7 oz |
| Maximum Output Current with Heat Sink | 50 A |
| Insulation Resistance | 1,000 megaohm |
| Input Current | 2 to 4 mA |
| Output Switching Mode | Zero Crossing |
| Response Time | 10 msec |
| Current Type | AC |
| Body Depth | 2.29 in |
| Body Height | 1.38 in |
| Output Voltage Range | 24 to 280 V AC |
| Minimum Operating Temperature | -40 deg F |
| Maximum Output Current without Heat Sink | 12 A |
| Series | 6000 Series |
| Status Indicator | Green LED Indicator |
| Switch Component Type | SCR |
| Switch Configuration | Form A |
| Maximum Operating Temperature | 176 Degrees F |
| Body Width | 1.85 in |
| Dielectric Strength | 4,000 V |
| Power Factor | 1 |
| Electrical Phase | Single |
| Ambient Air Temperature for Storage | -40 to 257°F |
| Local Signalling | for input status 1 LED (green) |
| Surge Current | 500 A 16.6 ms |
| Control Circuit Voltage | 90...280 V AC |
| Switch Function | SPST |
| Leakage Current | 10 mA (at off-state) |
| Ambient Air Temperature for Operation | -40 to 176°F |
| maximum output current | 50 A AC |
| Holding Current | 250 mA |
| Contacts Type and Composition | NO |
| Tightening Torque | 10 lb.in for input; 20 lb.in for output |
| Connections Terminals | Input screw clamp terminal, 1; Output screw clamp terminals, 1 |
| Protection Technology | Current limiter |
| Range | Legacy |
| Maximum I²t for fusing | 1250 A².s 8.3 ms |
| Input Current Limits | 2 to 4 mA at 240 V AC typical |
| Thermal Resistance | 0.63°C/W |
| Output Voltage | 24...280 V AC |
| DV/dt | 500 V/µs off-state at maximum rated voltage |
| Voltage Drop | <1.6 V on-state AC |
| Input Impedance | 60 kOhm |
| Maximum Peak Voltage | 600 V |
| Product Certifications | CSA, CE, UL |
| Switching Device | SCR output; Zero voltage switching |
| Insulating Resistance | 1 GΩ |
| Network Number of Phases | 1 phase |
| Must Release Voltage | 10 V |
| Maximum I²t for fusing | 1250 A².s 8.3 ms |
| Package Quantity | 1 |
