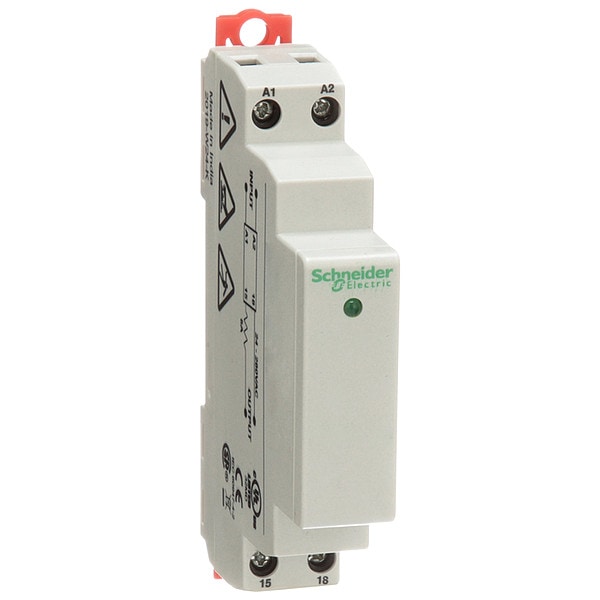

Relé de estado sólido, 90 a 280VCA, 8A.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Relay | Solid State Relay |
| Input or Control Voltage | 90 to 280 V AC |
| Output or Controlled Voltage Range | 48 to 480 V AC |
| Max. Output Amps w/Heat Sink | 8 A |
| Case Color | Gray |
| Mounting - Relay | DIN Rail |
| Contact Form - Relay | SPST-NO |
| Item | Solid State Relay |
| Overall Height - Relay | 2.6 in |
| Input Power Consumption (Burden) | 3.4VA |
| Includes | Internal Heat Sink |
| Body Depth - Relay | 0.7 in |
| Finger Safe | Yes |
| Body Width - Relay | 3-1/2 in |
| Max. Output w/Heat Sink | 8 A |
| Turns On At | Zero Cross |
| Standards | CE Certified, CSA Certified, UL Listed |
| Voltage Output | 48 to 480 VAC |
| Input or Control Voltage Range | 90 to 280VAC |
| Input Voltage | 90 to 280V AC |
| Max. Output Amps Without Heat Sink | 8 A (Integral Heat Sink) |
| Relay Turns On At | Zero Crossing |
| Heat Sink | Integral |
| Switch Type | Triac |
| Body Height - Relay | 2.6 in |
| Phase | 1 |
| Mounting | DIN |
| Depth | 3.54 in |
| Mounting Style | DIN Rail & Panel |
| Electrical Connection | Screw Clamp |
| Width | 0.62 in |
| Height | 2.56 in |
| Minimum Operating Temperature | -22 deg F |
| Body Depth | 2.6 in |
| Input Current | 20 mA |
| Weight | 4.48 oz |
| Status Indicator | Green LED Indicator |
| Overall Depth | 2.6 in |
| Output Voltage Range | 48 to 480 V AC |
| Series | 861 Series |
| Drop Out Voltage | 1.6 V DC |
| Electrical Phase | Single |
| IP Rating | IP20 |
| Dielectric Strength | 2,500 V |
| Body Height | 3-1/2 in |
| Current Type | AC |
| Body Width | 0.62 in |
| Voltage Type | AC Output |
| Maximum Operating Temperature | 176 Degrees F |
| Maximum Output Current without Heat Sink | 8 A |
| Switch Configuration | Form A |
| Switch Component Type | Triac |
| Response Time | 40 msec |
| Maximum Output Current with Heat Sink | 8 A |
| Output Switching Mode | Zero Crossing |
| Contacts Type and Composition | NO |
| Ambient Air Temperature for Storage | -40 to 212°F |
| Load Current | 8 A at nominal load; 5 A incandescent lamp; 3 A motor |
| Surge Current | 200 A 1 cycle |
| Network Number of Phases | 1 phase |
| Range | Legacy |
| Local Signalling | for input status 1 LED (green) |
| Mounting Support | Panel; DIN rail |
| maximum output current | 8 A AC |
| Output Voltage | 48...480 V AC |
| Control Circuit Voltage | 90...280 V AC |
| Input Current Limits | 20 mA at 240 V AC typical |
| Voltage Drop | <1.6 V peak AC |
| Overload Current | 24 A for 1 second |
| Maximum I²t for fusing | 250 A².s 8.3 ms |
| Thermal Resistance | 2°C/W |
| Holding Current | 150 mA |
| Tightening Torque | 0.8 N.m for input/output |
| Must Release Voltage | 10 V |
| Leakage Current | 6 mA at off-state 480 V AC |
| Ambient Air Temperature for Operation | -22 to 176°F |
| Product Certifications | CSA, CE, UL |
| Connections Terminals | Input/output screw clamp terminal 0.00 in² (2.5 mm²) AWG 14) |
| Switch Function | SPST |
| DV/dt | 250 V/µs off-state at maximum rated voltage |
| Switching Device | Triac output |
| Maximum I²t for fusing | 250 A².s 8.3 ms |
| Package Quantity | 1 |
