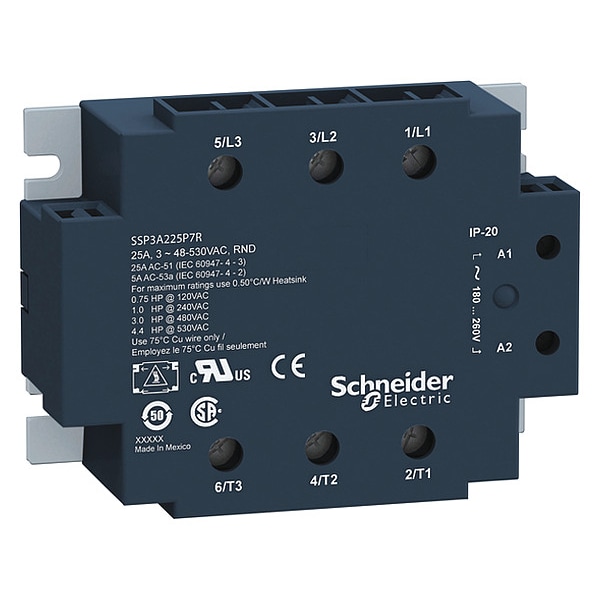

Relevador de Estado Sólido, Entrada 4-32VDC, Salida 48-530VAC, SCR
| Item - Relay | Solid State Relay |
|---|---|
| Input or Control Voltage | 4 to 32 V DC |
| Output or Controlled Voltage Range | 48 to 530 V AC |
| Heat Sink | Not Included |
| Mounting - Relay | Through Panel |
| Input Voltage | 4 to 32V DC |
| Item | Solid State Relay |
| Body Depth - Relay | 1.4 in |
| Phase | 3 phase |
| Body Height - Relay | 3.14 in |
| Includes | Not Found |
| Body Width - Relay | 3.99 in |
| Finger Safe | Yes |
| Standards | CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed |
| Overall Height - Relay | 3.14 in |
| IP Rating | IP20 |
| Dielectric Strength | 4,000V AC |
| Maximum Output Current without Heat Sink | Not Recommended |
| Power Factor | 0.5 |
| Electrical Connection | Screw Clamp |
| Electrical Phase | Three |
| Input Current | 24 to 35 mA |
| Mounting Style | Panel |
| Switch Component Type | SCR |
| Maximum Operating Temperature | 176 deg F |
| Status Indicator | Green LED Indicator |
| Insulation Resistance | 1,000 megaohm |
| Horsepower @ 240V AC | 1 HP |
| Response Time | 0.1 msec |
| Body Height | 3.13 in |
| Voltage Type | AC Output |
| Minimum Operating Temperature | -40 deg F |
| Body Depth | 1.39 in |
| Minimum Switching Voltage | 4 V DC |
| Weight | 8.48 oz |
| Maximum Capacitance | 8 pF |
| Output Switching Mode | Instantaneous, Random |
| Overall Depth | 1.39 in |
| Current Type | DC |
| Body Width | 3.98 in |
| Output Voltage Range | 48 to 530 V AC |
| Maximum Output Current with Heat Sink | 25 A |
| Maximum Switching Voltage | 1 V DC |
| Drop Out Voltage | 1.35 V DC |
| Series | Harmony(TM) SSP Series |
| Flame Retardance | V0 conforming to UL 94 |
| Maximum Voltage Drop | <1.35 V on-state |
| Ambient Air Temperature For Storage | -40-125°C |
| Tightening Torque | 0.9 to 1.1 N.m for input || 1.7 to 2.2 N.m for output |
| Marking | CE |
| Local Signalling | LED, green input |
| Mounting Support | panel |
| Maximum Leakage Current | 3 mA off-state |
| Thermal Resitance | W, 0.24°C |
| Maximum Horse Power Rating | 0.75 hp 40°C 120 V AC || 1 hp 40°C 240 V AC || 3 hp 40°C 480 V AC || 4.4 hp 40°C 530 V AC |
| Motor Power Kw | 0.56 kW 40-40°C 120 V AC || 0.74 kW 40-40°C 240 V AC || 2.22 kW 40-40°C 480 V AC || 3.24 kW 40-40°C 530 V AC |
| Capacitance Unbalance | 8 pF (for input/output) |
| Dv/Dt | 500 V/µs off-state at maximum voltage |
| Depth | 35.4 mm |
| Height | 79.7 mm |
| Product Or Component Type | solid state relay up to 30 A |
| Line Rated Current | 25 A |
| Control type | without test button |
| Connections - Terminals | screw terminals 1 x 0.2 to 1 x 2.5 mm², AWG 24 to AWG 14) input || screw terminals 1 x 1.5 to 1 x 10 mm², AWG 16 to AWG 8) output |
| Solid State Output Type | random voltage switching |
| Width | 101.3 mm |
| Load Current | 0.1 to 25 A |
| Product Certifications | CSA || UL |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Input Current Limits | 24 to 35 mA |
| [Uc] Control Circuit Voltage | 4 to 32 V DC |
| Absolute Maximum Voltage | 1,200 V |
| Device Short Name | SSP |
| Ambient Air Temperature For Operation | -40-80°C |
| Output Voltage | 48 to 530 V AC |
| Pollution Degree | 2 |
| Maximum I²T For Fusing | 380 A².s for 10 ms at 50 Hz || 370 A².s for 8.3 ms at 60 Hz |
| Ip Degree Of Protection | IP20 |
| Surge Current | 275 A 20 ms || 300 A 16.6 ms || 85 A 1 s |
| Overvoltage Category | III |
| Package Quantity | 1 |
