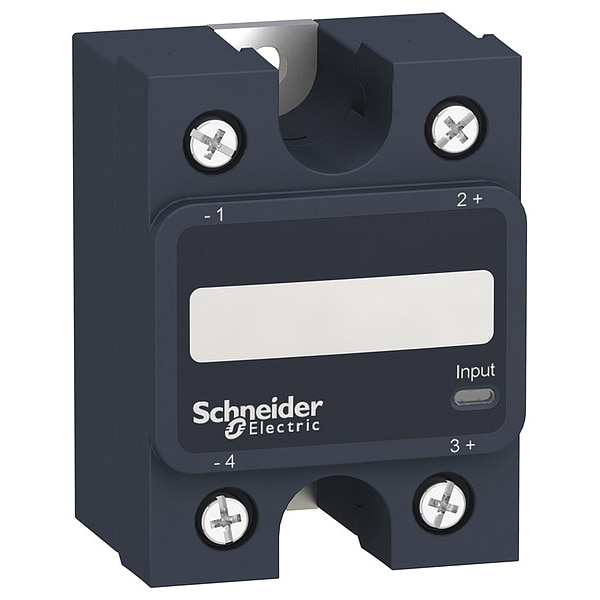

Relevador de estado sólido, Entrada de 4-32VCD, Salida de 48-660VCA, SCR.
| Item - Relay | Solid State Relay |
|---|---|
| Input or Control Voltage | 4 to 32 V DC |
| Output or Controlled Voltage Range | 48 to 660 V AC |
| Heat Sink | Not Included |
| Switch Type | SCR |
| Mounting - Relay | Through Panel |
| Input Voltage | 4 to 32V DC |
| Item | Solid State Relay |
| Overall Height - Relay | 2.32 in |
| Body Height - Relay | 2.32 in |
| Body Width - Relay | 1-3/4 in |
| Body Depth - Relay | 1.35 in |
| Standards | CE Certified, CSA C22.2 No 14-13, CSA Certified, EAC, EN/IEC 60950-1, EN/IEC 62314, UL 508, UL Listed |
| Phase | 1 phase |
| Finger Safe | Yes |
| Includes | Thermal Pad |
| Weight | 3.15 oz |
| Body Height | 2.32 in |
| Electrical Connection | Screw Clamp |
| Electrical Phase | Single |
| Maximum Operating Temperature | 176 deg F |
| IP Rating | IP20 |
| Overall Depth | 1-1/4 in |
| Output Switching Mode | Zero Crossing |
| Mounting Style | Panel |
| Maximum Switching Voltage | 1 V DC |
| Minimum Operating Temperature | -40 deg F |
| Body Depth | 1-1/4 in |
| Switch Component Type | SCR |
| Body Width | 1-3/4 in |
| Voltage Type | AC Output |
| Maximum Output Current without Heat Sink | Not Recommended |
| Response Time | 0.5 msec |
| Current Type | DC |
| Insulation Resistance | 1,000 megaohm |
| Output Voltage Range | 48 to 660 V AC |
| Horsepower @ 240V AC | 3 HP |
| Minimum Switching Voltage | 4 V DC |
| Maximum Output Current with Heat Sink | 90 A |
| Maximum Capacitance | 8 pF |
| Dielectric Strength | 4,000V AC |
| Status Indicator | Green LED Indicator |
| Drop Out Voltage | 1.15 V DC |
| Input Current | 7 to 12 mA |
| Series | Harmony(TM) SSP Series |
| Power Factor | 0.5 |
| Input Current Limits | 7 to 12 mA |
| Tightening Torque | 1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output |
| Device Short Name | SSP1 |
| Maximum Horse Power Rating | 1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC |
| Capacitance Unbalance | 8 pF (for input/output) |
| Thermal Impedance | 0.48°C-in²/W at 25 psi |
| Connections - Terminals | screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mm², AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mm², AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV output to case || 6 kV input to output |
| Dv/Dt | 500 V/µs off-state at maximum voltage |
| Thermal Resitance | junction to case |
| Absolute Maximum Voltage | 1,200 V |
| Protection Device Type | type 1 - 63 A miniature circuit breaker B || type 2 - 50 A miniature circuit breaker B |
| Ambient Air Temperature For Storage | -40-125°C |
| Solid State Output Type | zero voltage switching || SCR output |
| Line Rated Current | 90 A |
| Provided Equipment | thermal pad |
| Overvoltage Category | III |
| Maximum I²T For Fusing | 5976 A².s for 8.33 ms at 60 Hz || 6560 A².s for 10 ms at 50 Hz |
| Maximum Voltage Drop | <1.15 V on-state |
| Surge Current | 1200 A 16.6 ms |
| Pollution Degree | 2 |
| Output Voltage | 48 to 660 V AC |
| Maximum Leakage Current | 1 mA off-state |
| Ambient Air Temperature For Operation | -40-80°C |
| Product Or Component Type | solid state relay up to 125 A |
| Mounting Support | panel |
| Product Certifications | UL || CSA || CE || EAC |
| Local Signalling | LED, green input |
| Load Current | 0.15 to 90 A |
| Ip Degree Of Protection | IP20 |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Marking | EAC || UL || CE || CSA |
| [Uc] Control Circuit Voltage | 4 to 32 V DC |
| Package Quantity | 1 |
