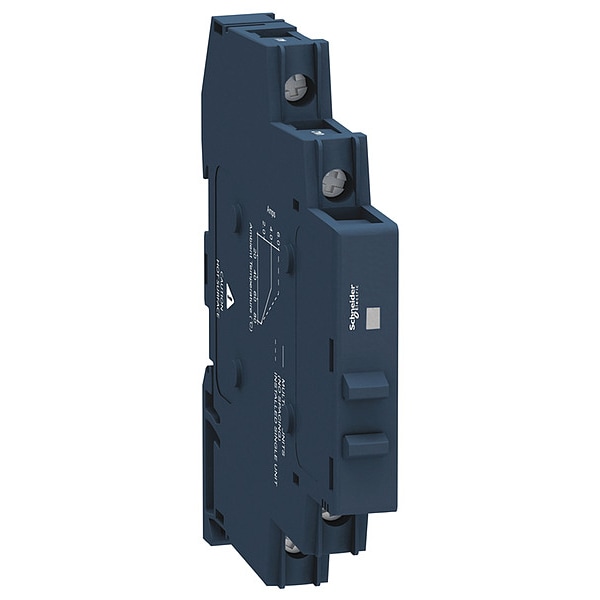

SolStateRely, In18-36VAC, Out24-280VAC, SCR
SolStateRely, entrada de 18-36VCA, salida de 24-280VCA, SCR
| Item - Relay | Solid State Relay |
|---|---|
| Input or Control Voltage | 18 to 36 V AC |
| Output or Controlled Voltage Range | 24 to 280 V AC |
| Heat Sink | Integral |
| Switch Type | SCR |
| Contact Form - Relay | SPST-NO |
| Relay Turns On At | Zero Crossing |
| Mounting - Relay | DIN Rail |
| Input Voltage | 18 to 36V AC |
| Item | Solid State Relay |
| Overall Height - Relay | 3.56 in |
| Body Width - Relay | 0.43 in |
| Body Height - Relay | 3.45 in |
| Body Depth - Relay | 3.3 in |
| Finger Safe | Yes |
| Case Color | Black |
| Includes | Single Channel |
| Phase | 1 phase |
| Standards | CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed |
| Response Time | 30 msec |
| Body Height | 3.55 in |
| Body Depth | 3.29 in |
| Maximum Switching Voltage | 4 V AC |
| Electrical Phase | Single |
| Mounting Style | DIN Rail |
| Minimum Operating Temperature | -22 deg F |
| Body Width | 0.43 in |
| Input Current | 3.5 to 8.5 mA |
| Minimum Switching Voltage | 18 V AC |
| Horsepower @ 240V AC | 4/25 hp |
| Maximum Operating Temperature | 176 deg F |
| Insulation Resistance | 1,000 megaohm |
| Drop Out Voltage | 1.3 V DC |
| Maximum Capacitance | 10 pF |
| Weight | 1.76 oz |
| Series | Harmony(TM) SSM Relays |
| Maximum Output Current with Heat Sink | 6 A |
| Switch Component Type | SCR |
| Overall Depth | 3.29 in |
| Dielectric Strength | 4,000V AC |
| Status Indicator | Green LED Indicator |
| Power Factor | 0.5 |
| Electrical Connection | Screw Clamp |
| IP Rating | IP20 |
| Output Voltage Range | 24 to 280 V AC |
| Voltage Type | AC Output |
| Current Type | AC |
| Switch Configuration | Form A |
| Maximum Output Current without Heat Sink | 6 A |
| Output Switching Mode | Zero Crossing |
| Marking | CE |
| Product Or Component Type | solid state relay up to 10 A |
| Input Current Limits | 3.5 to 8.5 mA |
| Surge Current | 285 A 16.6 ms || 300 A 20 ms |
| Local Signalling | for input status LED (green) |
| Capacitance Unbalance | 10 pF (for input/output) |
| Flame Retardance | V0 conforming to UL 94 |
| Maximum Leakage Current | 0.1 mA off-state |
| Depth | 83.7 mm |
| Overvoltage Category | III |
| Number Of Channels | 1 |
| Line Rated Current | 6 A |
| Ambient Air Temperature For Storage | -30-100°C |
| Absolute Maximum Voltage | 600 V |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Product Certifications | CSA || UL |
| Output Voltage | 24 to 280 V AC |
| Width | 11 mm |
| Maximum I²T For Fusing | 410 A².s for 10 ms at 50 Hz || 375 A².s for 8.33 ms at 60 Hz |
| Height | 90.3 mm |
| Tightening Torque | 0.5 to 0.8 N.m for input || 0.5 to 0.8 N.m for output |
| Load Current | 0.15 to 6 A |
| [Uc] Control Circuit Voltage | 18 to 36 V AC |
| Dv/Dt | 500 V/µs off-state at maximum voltage |
| Mounting Support | symmetrical DIN rail |
| Pollution Degree | 2 |
| Solid State Output Type | zero voltage switching || SCR output |
| Ip Degree Of Protection | IP20 |
| Device Short Name | SSM |
| Maximum Horse Power Rating | 0.16 hp 40°C 240 V AC |
| Maximum Voltage Drop | <1.3 V on-state |
| Connections - Terminals | screw terminals 1 x 0.3 to 1 x 1.5 mm², AWG 22 to AWG 16) input || screw terminals 1 x 0.3 to 1 x 2.5 mm², AWG 22 to AWG 14) output |
| Ambient Air Temperature For Operation | -30-80°C |
| Package Quantity | 1 |
