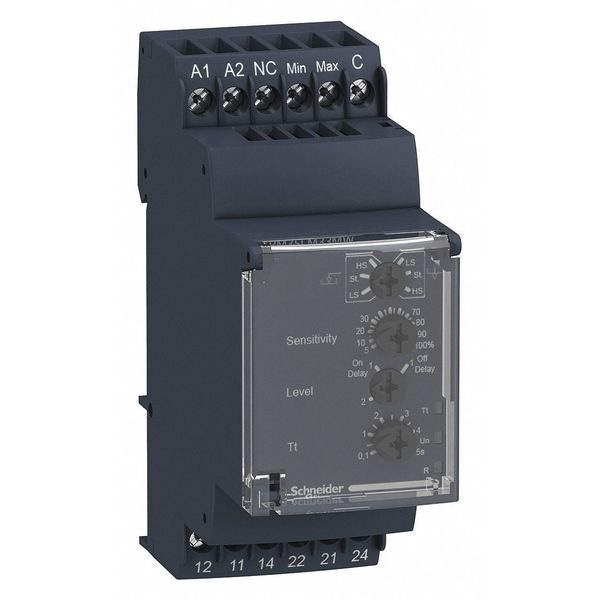

Relé de control de velocidad, Relés de Control Harmony, 5A, 1NA, 24...240V CA CC
| Coil Volts | 250VAC/DC |
|---|---|
| Item | Speed Relay 250V 5Amp Rm35 |
| Response Time | 15 ms max (on crossing the threshold) |
| Standards | NF EN 60255-6 || IEC 60255-6 |
| Status Led | 1 LED Green power ON || 1 LED Yellow inhibit || 1 LED Yellow relay (R) |
| Insulation Resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| Maximum Switching Voltage | 250 V AC/DC |
| Input Frequency | 0.0017-20 Hz |
| Polarity | reversible polarity on DC supply |
| Shock Resistance | 15 gn 11 ms IEC 60255-21-1 |
| Measurement Error | +/- 0.1 %/°C with temperature variation || < +/- 1 % over the whole range with voltage variation |
| Marking | CE : EMC 89/336/EEC || CE : 73/23, EEC |
| Supply Frequency | 50/60 Hz +/- 10 % |
| Relay Name | RM35S |
| Ip Degree Of Protection | IP20 IEC 60529 terminals) || IP30 IEC 60529 casing) |
| Measurement Range | 0.05...0.5 s || 0.5...5 min || 1...10 min || 1...10 s || 0.5...5 s || 0.1...1 s || 0.1...1 min |
| Non-Dissipating Shock Wave | 4 kV |
| Run-Up Delay At Power-Up | 0.05 sec |
| Contacts Material | cadmium free |
| Immunity To Microbreaks | 50 msec |
| Reset Time | 50 ms contact S2 in memory mode on time delay || 1 s supply Un in memory mode on time delay |
| Utilisation Category | AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1 |
| Width | 35 mm |
| Product Or Component Type | control relay |
| Relay Monitored Parameters | overspeed || underspeed |
| [Ui] Rated Insulation Voltage | 250 V IEC 60664-1 |
| Relative Humidity | 95-95 % 55-55°C IEC 60068-2-30 |
| Maximum Supply Current For Sensors | 40 mA < 24 V AC 25°C || 40 mA < 24 V DC 25°C || 50 mA 24...240 V AC || 50 mA 24...240 V DC |
| Hysteresis | 5-5 % threshold |
| Switching Capacity In Va | 1,250 VA |
| Dielectric Test Voltage | 2 kV AC 50 Hz |
| Output Contacts | 1 C/O |
| [Us] Rated Supply Voltage | 24...240 V AC/DC, 11.5...12.5 V |
| Repeat Accuracy | +/- 0.5 % input and measurement circuit || +/- 0.5 % time delay |
| Impulse Duration | >= 5 ms high state || >= 5 ms low state |
| Maximum Power Consumption In Va | 5 VA AC |
| Time Delay Range | 0.6...60 s adjustable on energisation 0...10 % of the full scale value) |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Product Certifications | C-tick || GOST || UL || GL || CSA |
| Threshold Setting | 10...100 % |
| Electromagnetic Compatibility | emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2 |
| Input Compatibility | 3-wire sensor (E1) PNP or NPN, 12 V, 50 mA || NAMUR sensor (E2), 12 V, 1.5 kOhm || voltage input (E1), 0...30 V, 9.5 kOhm >= 4.5 V <= 1 V || volt-free contact input (E1), 12 V, 9.5 kOhm |
| Electrical Durability | 100000 cycles |
| Supply Voltage Limits | 20.4-264 V AC, DC |
| Mounting Support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Minimum Switching Current | 10 mA 5 V DC |
| Overvoltage Category | III IEC 60664-1 |
| Relay Type | control |
| Pollution Degree | 3 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Operating Position | any position without derating |
| Control Circuit Voltage Limits | 15 % + 10 % Un |
| Housing Material | self-extinguishing plastic |
| Operating Rate | <= 360 operations/hour full load |
| Vibration Resistance | 0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1 |
| Measurement Accuracy | +/- 10 % of the full scale value |
| Mechanical Durability | 30000000 cycles |
| Nominal Output Current | 5 A |
| Ambient Air Temperature For Operation | -20-50°C |
| Connections - Terminals | screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Maximum Power Consumption In W | 3 W DC |
| Time Delay Type | adjustable 0.6...60 s Ti- inhibition time delay upon startup |
| Range of Product | Harmony Control Relays |
| Control Type | without test button |
| Package Quantity | 1 |
