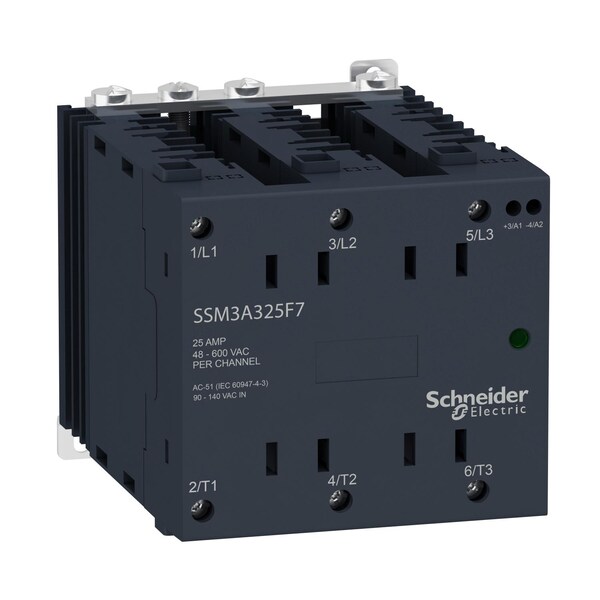

Ssr3 Ch, 25A@48-600VAC, ZC, 180-280VAC, 25 A, 48 a 600V CA, Serie SSM3
| Item | Ssr3 Ch,25A@48-600VAC,ZC,180-280VAC |
|---|---|
| Series | SSM3 |
| Amps | 25 A |
| AC Voltage Rating | 48 to 600V AC |
| Phase | 3 |
| Terminal Connection | Screw Terminals |
| Features | Mercury Free |
| Standards | UL 508, IEC 60950-1, CSA C22.2 No 14, EAC |
| Min. Wire Size | 24 AWG |
| Max. Wire Size | 10 AWG |
| Tightening Torque | 0.6...0.7 N.m for input, 1.36...1.7 N.m for output |
| Switching Voltage | 10 V turn-off, 180 V turn-on |
| Solid State Output Type | zero voltage switching |
| Local Signalling | for LED |
| Range of Product | Harmony Solid State Relays |
| Input Current Limits | 19 to 24 mA |
| Overvoltage Category | III |
| Insulation Resistance | 1,000 MOhm |
| Cos Phi | 0.5-0.5 (with maximum load) |
| Pollution Degree | 2 |
| Surge Current | 286 A 20 ms 50 Hz, 300 A 16.6 ms 60 Hz |
| Capacitance Unbalance | 8 pF for input/output |
| Output Switching Mode | zero voltage switching |
| Connections - Terminals | screw terminals 0.2...1.3 mm², AWG 24...AWG 16) input, screw terminals 1.3...5.3 mm², AWG 16...AWG 10) output |
| Marking | CE, CSA, EAC, UL |
| Maximum Horse Power Rating | 1 hp 40°C 240 V AC, 2 hp 40°C 380 V AC, 3 hp 40°C 480 V AC |
| Output Voltage | 48...600 V AC |
| Ip Degree of Protection | IP20 |
| Dielectric Strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| Dv/Dt | 500 V/µs off-state at maximum voltage |
| Ambient Air Temperature For Storage | -40-100°C |
| Ambient Air Temperature For Operation | -20-60°C |
| Absolute Maximum Voltage | 1100 V |
| Maximum Voltage Drop | <1.35 V on-state |
| [Uc] Control Circuit Voltage | 180...280 V AC |
| Maximum Leakage Current | 0.25 mA off-state |
| Maximum I²T For Fusing | 410 A².s for 10 ms at 50 Hz, 374 A².s for 8.3 ms at 60 Hz |
| Load Current | 0.1 to 25 A |
| Mounting Support | symmetrical DIN rail |
| Product or Component Type | solid state relay up to 30 A |
| Response Time | 30 msec, 20 msec |
| Package Quantity | 1 |
