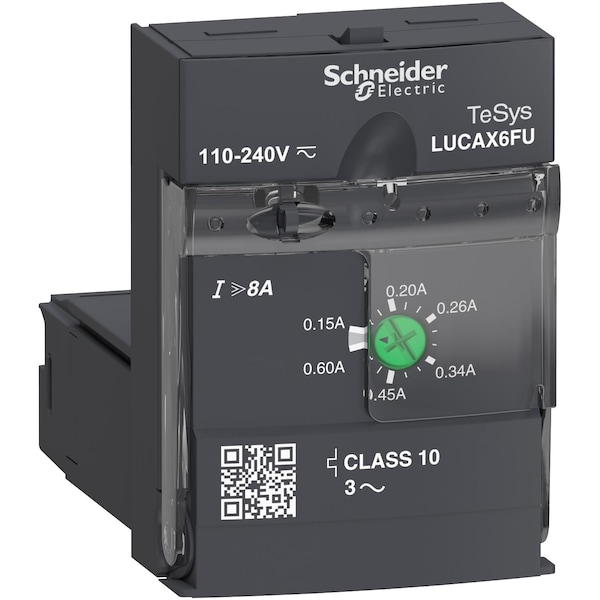

Unidad de control estándar, TeSys Ultra, 0.15A a 0.6A, motores de 3P, protección térmico-magnética, clase 10, bobina 110-240VAC/DC.
| Item | Stdcntrlunitcl103Ph 01506A 110240Vac |
|---|---|
| Overload Relay Amp Setting | 0.15 to 0.6 A |
| Coil Volts | 110 to 240V AC; 110 to 220V DC |
| Depth | 60 mm |
| Standards | EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine |
| Features | Protection against overload and short-circuit; Protection against phase failure and phase imbalance; Manual reset; Earth fault protection; Free of Halogen, Mercury & Pvc Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration |
| Hz | 40 to 60 Hz |
| Height | 66 mm |
| Width | 45 mm |
| Weight | 0.135 kg |
| Operating Voltage | 690V AC |
| Device Short Name | LUCA |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| [Ue] Rated Operational Voltage | 690 V AC |
| Motor Power Kw | 0.09 kW 400...440 V AC 50/60 Hz |
| Range of Product | TeSys Ultra |
| Ambient Air Temperature For Operation | -25-70°C |
| Product or Component Type | control unit |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| Vibration Resistance | 2 gn 5-300 Hz power poles open IEC 60068-2-6, 4 gn 5-300 Hz power poles closed IEC 60068-2-6 |
| Product Specific Application | Basic protection requirements for motor starters: overload and short-circuit |
| Ambient Air Temperature For Storage | -40-85°C |
| Operating Time | 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 50 ms closing with LUB12 control circuit, 50 ms closing with LUB32 control circuit, 50 ms closing with LUB38 control circuit |
| Utilisation Category | AC-41, AC-43, AC-44 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Product Name | TeSys Ultra |
| Load Type | 3-phase motor self-cooled |
| Compatibility Code | LUCA |
| Function Available | protection against overload and short-circuit, protection against phase failure and phase imbalance, manual reset, earth fault protection |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2 |
| Thermal Protection Adjustment Range | 0.15 to 0.6 A |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Device Application | motor control, motor protection |
| Safe Separation of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 |
| Tripping Threshold | 14.2 x Ir +/- 20 % |
| Pvc Free | Yes |
| Fixing Mode | plug-in |
| Typical Current Consumption | 280 mA 110...240 V AC I maximum while closing with LUB12, 280 mA 110...240 V AC I maximum while closing with LUB32, 280 mA 110...240 V AC I maximum while closing with LUB38, 280 mA 110...220 V DC I maximum while closing with LUB12, 280 mA 110...220 V DC I maximum while closing with LUB32, 280 mA 110...220 V DC I maximum while closing with LUB38, 35 mA 110...240 V AC I rms sealed with LUB12, 25 mA 110...240 V AC I rms sealed with LUB32, 25 mA 110...240 V AC I rms sealed with LUB38, 35 mA 110...220 V DC I rms sealed with LUB12, 25 mA 110...220 V DC I rms sealed with LUB32, 25 mA 110...220 V DC I rms sealed with LUB38 |
| Product Compatibility | power base LUB12, power base LUB32, power base LUB38, power base LUB120, power base LUB320, power base LUB380, reversing contactor breaker LU2B12FU, reversing contactor breaker LU2B32FU, reversing contactor breaker LU2B38FU |
| [Uc] Control Circuit Voltage | 110...240 V AC, 110...220 V DC |
| Immunity To Microbreaks | 3 msec |
| Non-Dissipating Shock Wave | 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2 |
| Thermal Overload Class | class 10 40-60 Hz -25-70°C IEC 60947-6-2, class 10 40-60 Hz -25-70°C UL 508 |
| Resistance To Radiated Fields | 10 V/m 3 IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Range | TeSys |
| Protective Treatment | TH IEC 60068 |
| Ip Degree of Protection | IP20 front panel and wired terminals IEC 60947-1, IP20 other faces IEC 60947-1, IP40 front panel outside connection zone IEC 60947-1 |
| Control Circuit Voltage Limits | 88...264 V AC 110...240 V in operation, 88...242 V DC 110...220 V in operation, 55 V AC 110...240 V drop-out, 55 V DC 110...220 V drop-out |
| Network Frequency | 40...60 Hz |
| Fire Resistance | 960°C parts supporting live components IEC 60695-2-12, 650°C IEC 60695-2-12 |
| Heat Dissipation | 2-2 W control circuit with LUB12, 3-3 W control circuit with LUB32, 3-3 W control circuit with LUB38 |
| Immunity To Voltage Dips | 70 % / 500 ms IEC 61000-4-11 |
| Package Quantity | 1 |
