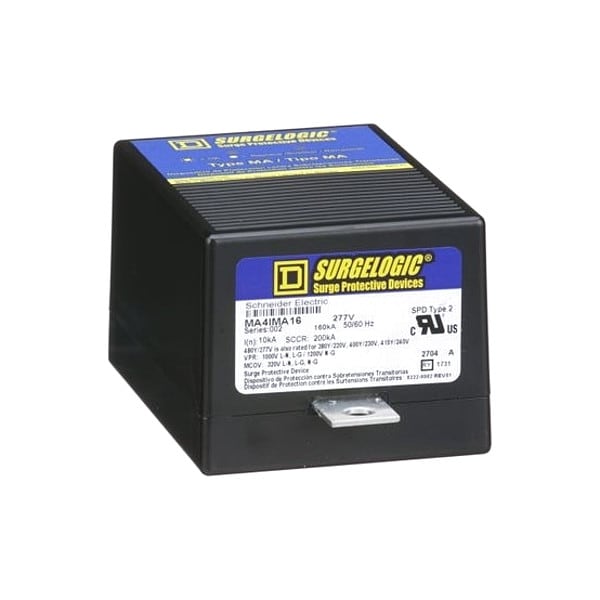

Surge Protection Device, 3 Phase, 277/480V AC, 4 Wires, 160 kA
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Panel |
| Phase | 3 |
| Voltage | 277/480V AC |
| Number of Wires | 4 Wires |
| Max. Surge Current per Mode | 160 kA |
| Max. Surge Current per Phase | 160 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Max. Continuing Operating Voltage | 320V |
| Enclosure NEMA Rating | NEMA 2 |
| Enclosure Material | Plastic |
| Length | 158.8 mm |
| Depth | 68.3 mm |
| Width | 82.8 mm |
| Standards | ANSI/IEEE C62.41, ANSI/IEEE C62.45, CSA C22.2 No 8:1986, NEC 285, REACH, ROHS, UL 1283:ed. 5, UL 1449:ed. 4 |
| Overall Height | 6-1/4 in |
| Overall Width | 3.26 in |
| For Use With | SSP01EMA12, SSP01EMA12D, SSP01EMA16, SSP01EMA16D, SSP01EMA24D, SSP01EMA32, Surge Protection Devices |
| Reactive Power | Not Applicable |
| NEMA Enclosure Type | 2 |
| Frequency | 60 Hz |
| Overall Depth | 2.69 in |
| Surge Protection | Fuse |
| Local Signalling | status LED green normal operation |
| Provided Equipment | alarm enable/disable switch |
| Mounting Support | panel mounting |
| Device Short Name | IMA |
| Surge Current | 160 kA |
| Connections - Terminals | terminals |
| [Uc] Maximum Continuous Operating Voltage | 320 V |
| Package Quantity | 1 |
