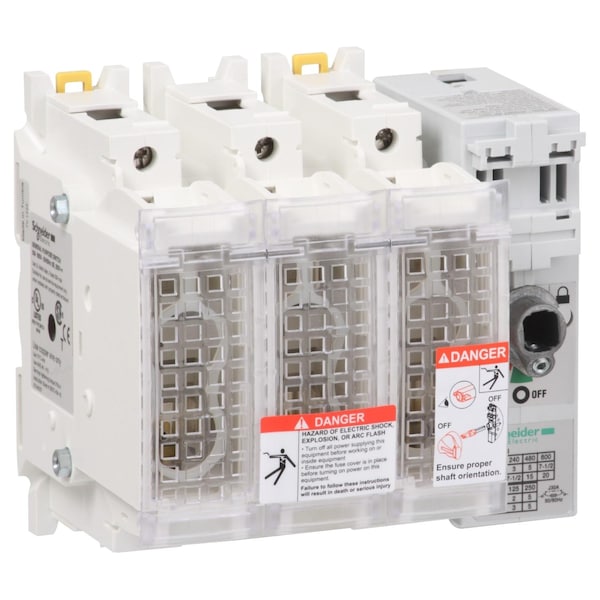

Switch disconnector fuse, TeSys GS, 3P, 30A, fuse type UL, size J
| Item | TeSys GS - switch-disconnector-fuse - 3 |
|---|---|
| Standards | UL98; CSA C22.2 No 4 |
| Width | 149.3 mm |
| Height | 136 mm |
| Mounting | Rail, Plate |
| Ambient Temp. Limits | Operation: -20 to 70°C; Storage: -40 to 80°C |
| Green Environmental Attribute | Mercury Free, Toxic Heavy Metal Free |
| Max. Amps | 30 |
| Termination Type | Lugs-Ring Terminals |
| Depth | 123 mm |
| Product or Component Type | switch-disconnector-fuse |
| Fuse Type | UL |
| Mechanical Durability | 10000 cycles |
| Connections - Terminals | power circuit lugs-ring terminals 2-13 mm² |
| [Ith] Conventional Free Air Thermal Current | 30 A (at 40°C) |
| Network Type | DC, AC |
| Fuse Size | J |
| Product Name | TeSys GS |
| Fire Resistance | 960°C body |
| Poles Description | 3P |
| Rated Operational Power In W | 15 kW 400 V, 18.5 kW 500 V, 25 kW 690 V |
| Range | TeSys |
| Type of Operating Handle | external frontal |
| Ip Degree of Protection | IP20 IEC 60529 with terminal cover) |
| Contacts Type And Composition | 3 NO |
| Device Short Name | GS2EU |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| [Ui] Rated Insulation Voltage | 750 V |
| Short-Circuit Withstand | 17.6 kA |
| Protected Poles Description | 3t |
| Ambient Air Temperature For Operation | -20-70°C |
| Electrical Durability | 6000 cycles |
| Network Frequency | 50/60 Hz |
| Mounting Support | rail, plate |
| Tightening Torque | power circuit 6.6-6.6 N.m |
| Ambient Air Temperature For Storage | -40-80°C |
| Package Quantity | 1 |
