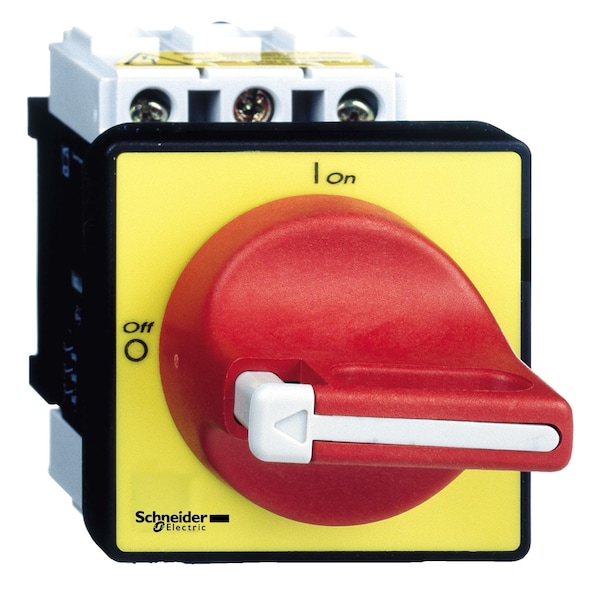

Interruptor seccionador, TeSys Control, para encendido/parada de emergencia, 20A(V01), fijación de ∅22.5, para montaje en puerta.
| Item | TeSys Vario - emergency stop switch disc |
|---|---|
| Standards | IEC 60947-3 |
| Width | 60 mm |
| Height | 74 mm |
| Rated Conditional Short-Circuit Current | 10 kA 400 V 20 A aM || 10 kA 400 V 20 A gG |
| Poles Description | 3 P |
| Network Type | DC || AC |
| Product Name | TeSys VARIO |
| Device Short Name | VCD |
| Making Capacity | 200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A |
| [Icm] Rated Short-Circuit Making Capacity | 1 kA 400 V at Ipeak |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Rated Operational Power In W | 11 kW 690 V AC-23A) || 3 kW 230...240 V AC-3) || 4 kW 400...415 V AC-3) || 5.5 kW 500 V AC-3) || 7.5 kW 500 V AC-23A) || 7.5 kW 690 V AC-3) || 4 kW 230...240 V AC-23A) || 5.5 kW 400...415 V AC-23A) |
| [Icw] Rated Short-Time Withstand Current | 300 A 400 V 1 s |
| Device Composition | switch || handle |
| Fixing Mode | hole 22.5 mm handle |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 || IP65 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Contacts Type And Composition | 3 NO |
| Control Type | rotary handle |
| Performance Level | high performance |
| [Ie] Rated Operational Current | 11 A AC-23 Ue: 400 V |
| Handle Front Plate Colour | yellow |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Base Dimension | 60 x 60 mm |
| Rotary Handle Mounting Style | direct |
| Ambient Air Temperature For Operation | -20-50°C |
| Product Certifications | GL || UL || CSA || CCC || UKCA |
| Mounting Support | handle door || switch door |
| Product Or Component Type | emergency stop switch disconnector |
| Protective Treatment | TC |
| Tightening Torque | power circuit 2.1-2.1 N.m screw clamp terminals |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Connections - Terminals | power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end |
| [Ithe] Conventional Enclosed Thermal Current | 16 A |
| Range | TeSys |
| [Ith] Conventional Free Air Thermal Current | 20 A |
| Breaking Capacity | 200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A) |
| Compatibility Code | main switch disconnector |
| Handle Colour | red |
| Suitability For Isolation | yes |
| Fire Resistance | 960°C IEC 60695-2-1 |
| Intermittent Duty Class | 30 |
| Marking | 0 - 1 |
| Mechanical Durability | 100,000 cycle |
| Electrical Durability | 100000 cycles AC-21 || 30000 cycles DC-1...5 |
| Package Quantity | 1 |
