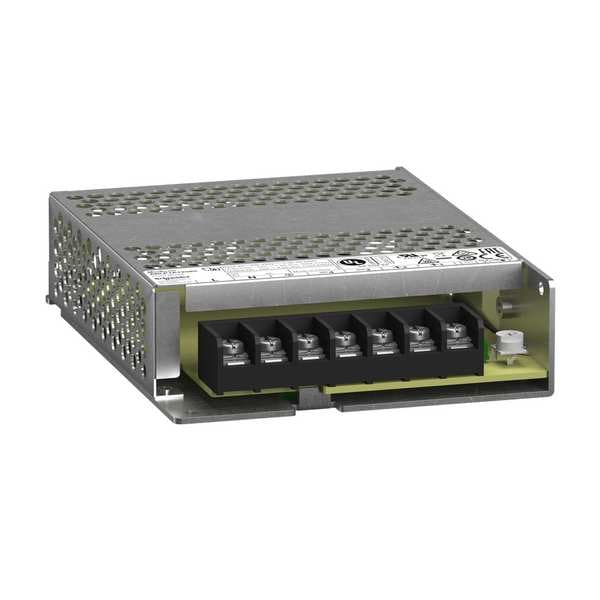

Switching Power Supply, 100/240V AC, 12V DC, 100W, 8.5A, Panel
| Item | Switching Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 12V DC |
| Power Rating | 100 W |
| Output Amps | 8.5 A |
| Mounting | Panel |
| Case Material | Aluminum Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 30 mm |
| Width | 97 mm |
| Depth | 129 mm |
| Hz | 50/60 Hz |
| Ripple Volts Regulation | Less Than 120mV |
| Status Indicator | Green LED |
| Load Regulation | Less Than 0.5% |
| Connection | Screw |
| Series | ABL |
| Hold Up Time | Greater Than 20 msec at 115 V AC, Greater Than 40 msec at 230 V AC |
| Peak Amps | 45 A at 115 V AC, 85 A at 230 V AC |
| Operating Temp. Range | -30 to 70 deg C |
| Protection | Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset |
| Standards | CB Scheme, CE, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201, CSA C22.2 No. 62368-1, cULus, EAC, EN 61000-3-3, EN 61010-2-201, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1 |
| Output Noise | Less than 120 mV |
| Line Regulation | Less Than 1% |
| IP Rating | IP10 |
| Features | Efficiency 88% at 230 V AC, Green Premium Product, Integrated Fuse, Mercury Free, Parallel and Serial Output Coupling, Relative Humidity 95% Without Condensation |
| Wire Connection Type | Terminals |
| NEMA Enclosure Rating | Not Applicable |
| Mean Time Between Failures (MTBF) | 700,000 hr |
| Current - Output | 8.33 A |
| Operating Temperature - Maximum | 158 deg F |
| Wire Size - Maximum | 14 AWG |
| Input Frequency - Nominal | 50/60 Hz |
| Output Power - Rated | 100 W |
| Operating Temperature - Minimum | -22 deg F |
| Wire Size - Minimum | 18 AWG |
| Housing Material | Aluminum |
| Maximum Efficiency @ 230V AC | 88% |
| Package Quantity | 1 |
