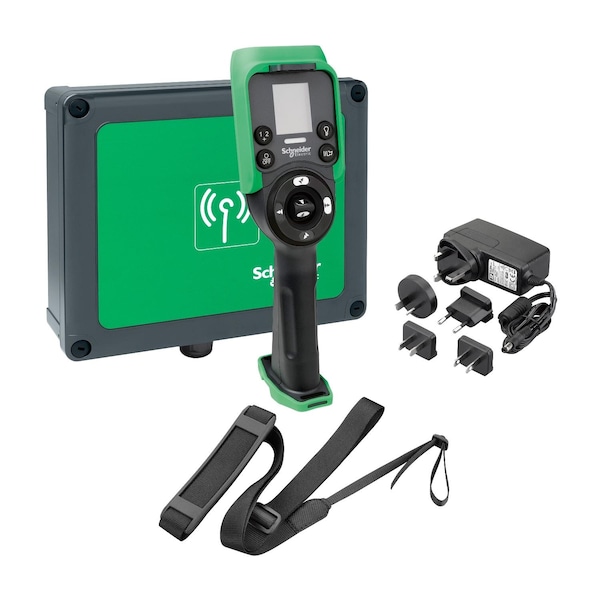

"Sistema con cargador, Harmony eXLhoist, estándar, cinturón de hombro, cable USB/RJ45 y software de configuración."
| Item | Complete Kit Zart8DZarb18WZarc01Cable |
|---|---|
| Type of Operator | wireless |
| Standards | IEC 60204-1 safety, ISO 13849-1 safety, IEC 62061 safety, IEC 61508 safety, ISO 13850 safety, IEC 60204-32 hoisting applications, ETSI EN 301 489-1 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-17 radio, ETSI EN 300 440-2 radio, ETSI EN 300 328 radio, FCC part 15 radio, RSS GEN issue 3 radio, RSS 210 issue 8 radio, ARIB STD-T81 radio |
| Application | stop function SIL 2 maximum can reach PL d/category 3)EN/IEC 62061, 3)EN/ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)EN/IEC 62061 ,4)EN/ISO 13849-1 || motion function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061,1)EN/ISO 13849-1 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061, 1)EN/ISO 13849-1; hoisting applications || material handling |
| Cable Entry | cable gland |
| Electromagnetic Compatibility | resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3 |
| Operating Distance | 100 m in free air |
| Kit Composition | base station, cable, shoulder belt, remote control, configuration software |
| Control Station Application | stop function SIL 2 maximum can reach PL d/category 3)IEC 62061, stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1, emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061, emergency stop function SIL 3 maximum can reach PL e/category 4)ISO 13849-1, motion function SIL 1 maximum can reach PL c/category 1)IEC 62061, motion function SIL 1 maximum can reach PL c/category 1)ISO 13849-1, limiter protection function SIL 1 maximum can reach PL c/category 1)IEC 62061, limiter protection function SIL 1 maximum can reach PL c/category 1)ISO 13849-1 |
| Product or Component Type | control station |
| Control Station Type | wireless |
| Transmission Frequency | 2.4 GHz |
| Device Short Name | XARS |
| Relative Humidity | 0-95 % -20-45°C storage |
| Radio Agreement | SRRC, RSS, ARIB, ANATEL, FCC, ICASA |
| Range of Product | Harmony eXLhoist |
| Product Specific Application | applications material handling, hoisting applications |
| Number of Channels | 50 |
| Communication Network Type | wireless bluetooth low energy |
| Package Quantity | 1 |
