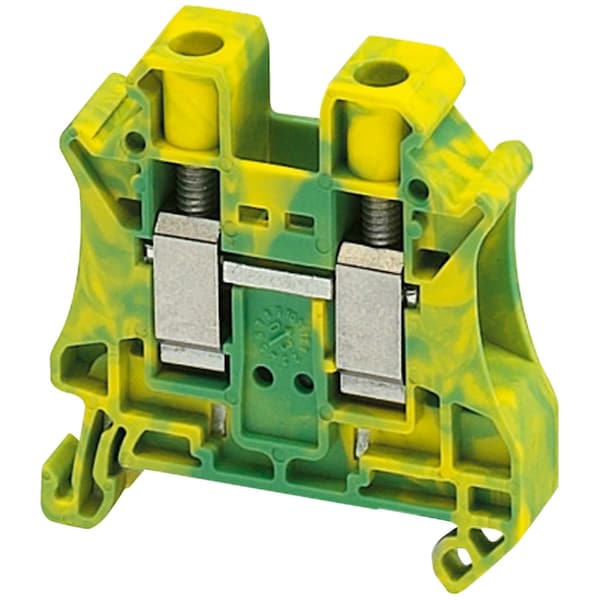

Bloque de terminales, Linergy TR, verde-amarillo, 10mm2, tierra protectora, 2 puntos, juego de 50.
| Item | SCREW TERMINAL,PROTECTIVE EARTH,2 POIN |
|---|---|
| Color | green-yellow |
| Material | polyamide 6/6 insulating case |
| Width | 10.2 mm |
| Length | 47.7 mm |
| Height | 47.5 mm |
| Cable Cross Section | 0.5-16 mm², solid || 0.5-10 mm², flexible with cable end || 0.2-10 mm², flexible without cable end |
| Product Name | Linergy TR |
| Nominal Cross Section | 10 mm² |
| Product Or Component Type | terminal block |
| Mounting Mode | clip-on |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
| Number Of Measurement Input | 2 |
| Product Certifications | IEC-Ex || cURus || LR || EAC || VDE || GL || ATEX || CSA || DNV |
| Resistivity | 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30 |
| Connection Position | sideways |
| Tightening Torque | 1.5-1.8 N.m |
| Dielectric Constant | 3.7 at 1 MHz |
| Product Compatibility | Spacial enclosures |
| Surface Resistance | 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30 |
| Flame Retardance | V0 0.8 mm UL 94 |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
| Device Short Name | TRV |
| Tool Type | connection screwdriver || disconnection screwdriver |
| Terminal Block Type | protective earth |
| Wire Stripping Length | 10 mm |
| Range | Linergy |
| Line Rated Current | 76-76 A EN/IEC 60947-7-1 |
| Terminal Block Level | 1 |
| Number Of Terminals | 2 |
| Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys |
| Connections - Terminals | 1 x screw terminal upstream || 1 x screw terminal downstream |
| Package Quantity | 1 |
