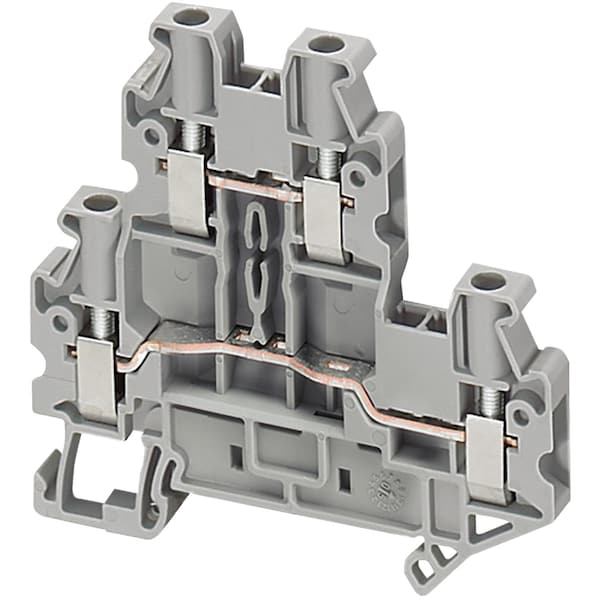

Bloque de terminales, Linergy TR, gris, 4mm2, doble nivel, 4 puntos, conjunto de 10
| Item | SCREW TERMINAL,DOUBLE LEVEL,4 POINTS, |
|---|---|
| Height | 65 mm |
| Length | 69.9 mm |
| Width | 6.2 mm |
| Standards | LR, IEC-Ex, EAC, GL, ATEX, cURus, DNV, CSA |
| Color | Gray |
| Material | polyamide 6/6: insulating case, copper alloy: connector and screw, copper alloy: commoning link, chromium-nickel steel: spring |
| Number of Measurement Input | 4 |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4 |
| Product Compatibility | Spacial enclosures |
| Cable Cross Section | 0.14-6 mm², solid with cable end, 0.2-4 mm², flexible with cable end, 0.14-6 mm², flexible without cable end, 0.14-6 mm², solid without cable end |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1, -40-130°C VDE 0304-T21 |
| Wire Stripping Length | 9 mm |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Range Compatibility | Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys |
| Flame Retardance | V0 0.8 mm UL 94 |
| Resistivity | 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30 |
| Surface Resistance | 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30 |
| Terminal Block Level | 2 |
| Tool Type | screwdriver |
| Range | Linergy |
| Line Rated Current | 30-30 A CSA, 30-30 A cURus, 30-30 A EN/IEC 60947-7-1, 25.5-25.5 A ATEX Exe II Ex II 2 GD |
| Terminal Block Type | passthrough |
| Tightening Torque | 0.6-0.8 N.m |
| [Ue] Rated Operational Voltage | 600 V CSA, 600 V cURus, 800 V EN/IEC 60947-7-1, 440 V ATEX Exe II Ex II 2 GD |
| Product Name | Linergy TR |
| Dielectric Constant | 3.7 at 1 MHz |
| Mounting Mode | clip-on |
| Connections - Terminals | 1 x screw terminal upstream M3), 1 x screw terminal downstream M3) |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30 |
| Nominal Cross Section | 4 mm² |
| Number of Terminals | 2 |
| Device Short Name | TRV |
| Product or Component Type | terminal block |
| Connection Position | sideways |
| Product Certifications | LR || IEC-Ex || EAC || GL || ATEX || cURus || DNV || CSA |
| Accessory / Separate Part Category | connection accessory |
| Package Quantity | 1 |
