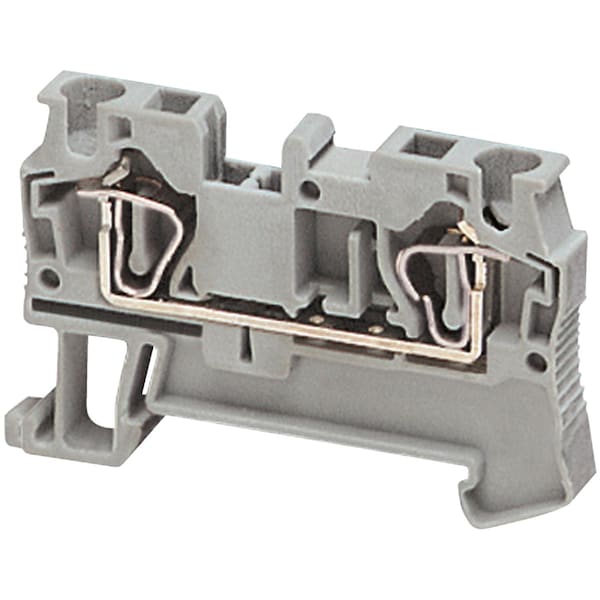

Bloque de terminales, Linergy TR, tipo resorte, paso de alimentación, 2 puntos, 4mm², gris, juego de 50
| Item | SPRING TERMINAL,FEED THROUGH,2 POINTS, |
|---|---|
| Height | 36.5 mm |
| Color | Gray |
| Material | polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring |
| Length | 56 mm |
| Width | 6.2 mm |
| Device Short Name | TRR |
| Accessory / Separate Part Category | connection accessory |
| Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys |
| Number Of Measurement Input | 2 |
| Product Or Component Type | terminal block |
| Product Compatibility | Spacial enclosures |
| [Ue] Rated Operational Voltage | 600 V CSA || 800 V EN/IEC 60947-7-1 || 600 V cURus |
| Tool Type | flat screwdriver |
| Wire Stripping Length | 10 mm |
| Mounting Mode | clip-on |
| Connections - Terminals | 1 x spring terminal upstream || 1 x spring terminal downstream |
| Flame Retardance | V0 0.8 mm UL 94 |
| Nominal Cross Section | 4 mm² |
| Terminal Block Type | passthrough |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
| Cable Cross Section | 0.08-4 mm², solid without cable end || 0.08-4 mm², flexible without cable end || 0.08-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end |
| Line Rated Current | 32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A cURus |
| Surface Resistance | 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30 |
| Range | Linergy |
| Dielectric Constant | 3.7 at 1 MHz |
| Connection Position | top |
| Terminal Block Level | 1 |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Number Of Terminals | 2 |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
| Product Name | Linergy TR |
| Product Certifications | IEC-Ex || VDE || cURus || EAC || LR || CSA || DNV || ATEX || GL |
| Resistivity | 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30 |
| Package Quantity | 1 |
