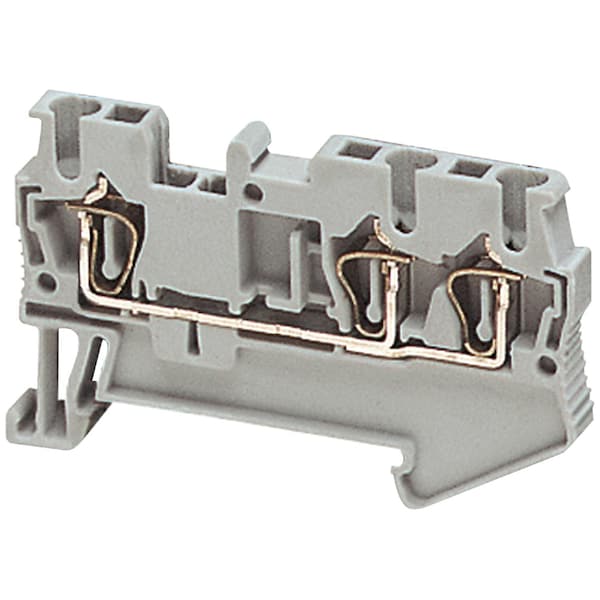

Bloque de terminales, Linergy TR, tipo resorte, paso a través, 3 puntos, 2.5mm², gris, juego de 50.
| Item | SPRING TERMINAL,FEED THROUGH,3 POINTS, |
|---|---|
| Standards | ATEX, cURus, EAC, CSA, GL, IEC-Ex, VDE, DNV, LR |
| Length | 60.5 mm |
| Color | Gray |
| Height | 36.5 mm |
| Material | polyamide 6/6: insulating case, copper alloy: connector and screw, copper alloy: commoning link, chromium-nickel steel: spring |
| Width | 5.2 mm |
| Range | Linergy |
| Terminal Block Level | 1 |
| Tool Type | screwdriver, disconnection |
| Cable Cross Section | 0.08-2.5 mm², flexible without cable end, 0.08-4 mm², solid with cable end, 0.2-2.5 mm², flexible with cable end, 0.08-4 mm², solid without cable end |
| Product Name | Linergy TR |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30 |
| Surface Resistance | 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30 |
| Mounting Mode | clip-on |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Dielectric Constant | 3.7 at 1 MHz |
| Number of Terminals | 3 |
| Terminal Block Type | passthrough |
| Wire Stripping Length | 10 mm |
| Flame Retardance | V0 0.8 mm UL 94 |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1, -40-130°C VDE 0304-T21 |
| Connections - Terminals | 1 x spring terminal upstream, 2 x spring terminal downstream |
| Nominal Cross Section | 2.5 mm² |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4 |
| Range Compatibility | Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys |
| [Ue] Rated Operational Voltage | 600 V CSA, 800 V EN/IEC 60947-7-1, 600 V cURus |
| Product Compatibility | Spacial enclosures |
| Number of Measurement Input | 2 |
| Line Rated Current | 20-20 A CSA, 20-20 A cURus, 24-24 A EN/IEC 60947-7-1 |
| Device Short Name | TRR |
| Product or Component Type | terminal block |
| Resistivity | 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30 |
| Connection Position | top |
| Accessory / Separate Part Category | connection accessory |
| Rated Operational Voltage | 600 V CSA; 800 V EN/IEC 60947-7-1; 600 V cURus |
| Product Certifications | ATEX || cURus || EAC || CSA || GL || IEC-Ex || VDE || DNV || LR |
| Package Quantity | 1 |
