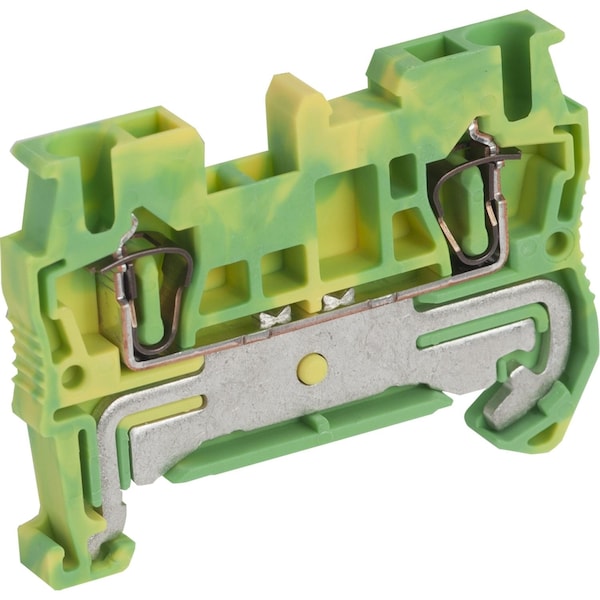

Bloque de terminales, Linergy TR, tipo resorte, tierra protectora, 2 puntos, 2.5mm², verde-amarillo, juego de 50.
| Item | SPRING TERMINAL,PROTECTIVE EARTH,2 POI |
|---|---|
| Width | 5.2 mm |
| Height | 36.5 mm |
| Length | 48.5 mm |
| Color | green-yellow |
| Material | polyamide 6/6 insulating case |
| Product Compatibility | Spacial enclosures |
| Terminal Block Level | 1 |
| Dielectric Constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30 |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
| Nominal Cross Section | 2.5 mm² |
| Mounting Mode | clip-on |
| Range | Linergy |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
| Surface Resistance | 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30 |
| Number Of Measurement Input | 2 |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
| Cable Cross Section | 0.08-4 mm², solid || 0.2-2.5 mm², flexible with cable end || 0.08-2.5 mm², flexible without cable end |
| Terminal Block Type | protective earth |
| Product Or Component Type | terminal block |
| Number Of Terminals | 2 |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Tool Type | flat screwdriver |
| Device Short Name | TRR |
| Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys |
| Connections - Terminals | 1 x spring terminal upstream || 1 x spring terminal downstream |
| Connection Position | top |
| Product Name | Linergy TR |
| Wire Stripping Length | 10 mm |
| Product Certifications | LR || EAC || CSA || GL || cURus || ATEX || DNV || VDE || IEC-Ex |
| Flame Retardance | V0 0.8 mm UL 94 |
| Package Quantity | 1 |
