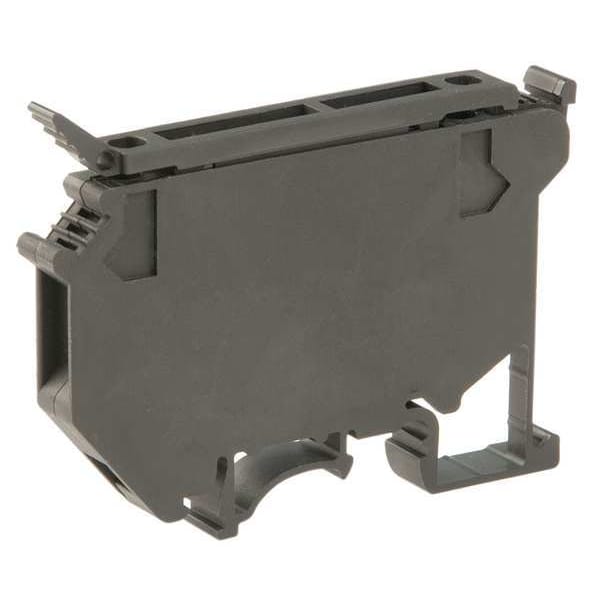

Terminal Block, Screw Clamp, 12A, 600V
| Item | Fused Terminal Block |
|---|---|
| Amps | 12 |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 26 AWG |
| Voltage | 600 V |
| Number of Poles | 1 |
| Number of Connections | 2 |
| Terminal Type | 110 to 250V AC/DC, LED, Lever-Type Fuse |
| Temp. Range | -76 to 266 deg F |
| Width | 0.32 in |
| Mounting Type | DIN |
| Block Material | Polyamide 6/6 |
| Height | 2.2 in |
| Depth | 2.85 in |
| Standards | CSA Certified, CURus, EAC |
| Connection Type | Screw Clamp |
| Pieces per Foot | 37 |
| Description/Special Features | Accepts 5 x 20mm Glass or Ceramic Fuse |
| Color | Black |
| Channel Size | 35mm |
| Length | 72.5 mm |
| Material | polyamide 6/6 insulating case |
| For Conductor Type | Solid, Stranded |
| Housing Material | Polyamide 6/6 |
| For Maximum Wire Size | 10 AWG |
| Special Features | Accepts 5 x 20mm Glass or Ceramic Fuse |
| Number of Tiers | 2 |
| Housing Color | Black |
| Circuit Protection Type | Fuse |
| Overall Length | 2.85 in |
| Overall Depth | 2.85 in |
| UL 94 Flammability Rating | V-0 |
| Strip Length | 5/16 in |
| Terminal Block Type | Disconnect |
| RoHS Compliant | Yes |
| Terminal Material | Copper |
| End Barrier Compatibility | Not Applicable |
| Minimum Operating Temperature | -40 deg F |
| Termination Style | Screw |
| For Minimum Wire Size | 26 AWG |
| Maximum Voltage | 600 V AC |
| Maximum Operating Temperature | 266 deg F |
| Torque | 7 in-lb |
| Overall Width | 0.32 in |
| Current | 12 A |
| For Channel Rail Size | 35 mm |
| Termination Screw Size | M3 |
| For Conductor Material | Copper |
| Tightening Torque | 0.5-0.8 N.m |
| Wire Stripping Length | 8 mm |
| Number Of Terminals | 2 |
| Flame Retardance | V0 0.8 mm UL 94 |
| Provided Equipment | 110...250 V light indicator |
| Ambient Air Temperature For Operation | -40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21 |
| Range | Linergy |
| Product Name | Linergy TR |
| Number Of Measurement Input | 0 |
| [Ue] Rated Operational Voltage | 500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA |
| Line Rated Current | 6.3-6.3 A EN/IEC 60947-7-1 || 12-12 A cURus || 6.3-6.3 A CSA |
| Creep Resistance | 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30 |
| Product Compatibility | Spacial enclosures |
| Resistivity | 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30 |
| Device Short Name | TRV |
| Connection Position | sideways |
| Connections - Terminals | 1 x screw terminal upstream || 1 x screw terminal downstream |
| Surface Resistance | 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30 |
| Nominal Cross Section | 4 mm² |
| Fuse Size | 5 mm x 20 mm |
| Dielectric Constant | 3.7 at 1 MHz |
| Cable Cross Section | 0.2-4 mm², flexible without cable end || 0.2-4 mm², solid |
| Terminal Block Level | 1 |
| Mounting Mode | clip-on |
| Product Certifications | cURus || CSA || EAC |
| Dielectric Strength | 1000 V IEC 60243-1 |
| Tool Type | connection screwdriver || disconnection screwdriver |
| Dielectric Loss | 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4 |
| Range Compatibility | Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys |
| Product Or Component Type | terminal block |
| Package Quantity | 1 |
