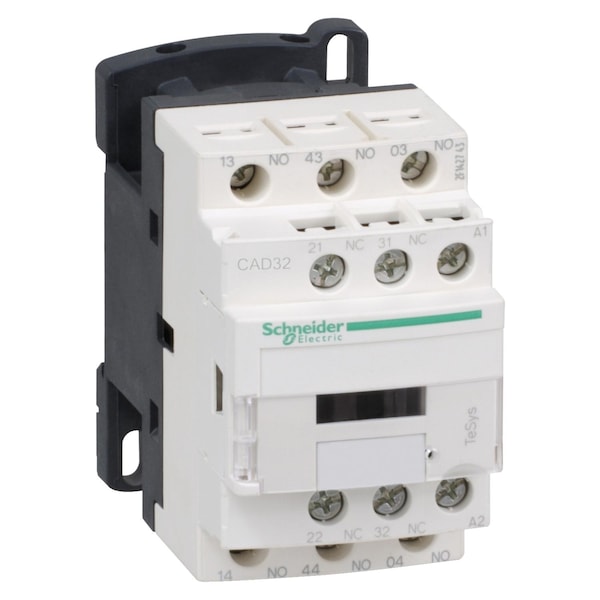

Relé de control TeSys Deca - 3 NA + 2 NC - <= 690 V - Bobina estándar de 110 V DC
| Coil Volts | 600 V |
|---|---|
| Item | Relay 600V 10Amp Tesys + Options |
| Depth | 93 mm |
| Width | 45 mm |
| Height | 77 mm |
| Standards | EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1 |
| Ambient Air Temperature For Operation | -40-60°C || 60-70°C with derating |
| Associated Fuse Rating | 10 A gG IEC 60947-5-1 |
| Connections - Terminals | screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²solid without cable end || screw clamp terminals 2 1-4 mm²solid without cable end |
| Tightening Torque | 1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2 |
| [Uc] Control Circuit Voltage | 110 V DC |
| Ip Degree Of Protection | IP2X front face VDE 0106 |
| Control Circuit Type | DC standard |
| Pole Contact Composition | 3 NO + 2 NC |
| Mechanical Robustness | shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6 |
| Mounting Support | rail || plate |
| Non-Overlap Time | 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact |
| Hold-In Power Consumption In W | 5.4-5.4 W 20°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Range | TeSys || TeSys Deca |
| Product Certifications | CB Scheme || CCC || UL || CSA || EAC || CE || UKCA |
| Irms Rated Making Capacity | 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1 |
| Operating Time | 53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening || 47...63 ms coil energisation and NC opening || 15...25 ms coil de-energisation and NC closing |
| Maximum Operating Rate | 180 cyc/mn |
| [Ui] Rated Insulation Voltage | 600 V UL || 600 V CSA || 690 V IEC 60947-5-1 |
| Utilisation Category | AC-15 || DC-13 || AC-14 |
| [Ith] Conventional Free Air Thermal Current | 10 A 60°C |
| Inrush Power In W | 5.4-5.4 W 20°C) |
| Control Circuit Voltage Limits | 0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC |
| Minimum Switching Voltage | 17 V |
| Insulation Resistance | > 10 MOhm |
| [Ue] Rated Operational Voltage | <= 690 V AC 25...400 Hz |
| Product Name | TeSys CAD |
| Device Short Name | CAD |
| Mechanical Durability | 30 Mcycles |
| Ambient Air Temperature For Storage | -60-80°C |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Minimum Switching Current | 5 mA |
| Protective Treatment | TH IEC 60068 |
| Product Or Component Type | control relay |
| Time Constant | 28 msec |
| [Icw] Rated Short-Time Withstand Current | 100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms |
| Contactor Application | control circuit |
| Package Quantity | 1 |
