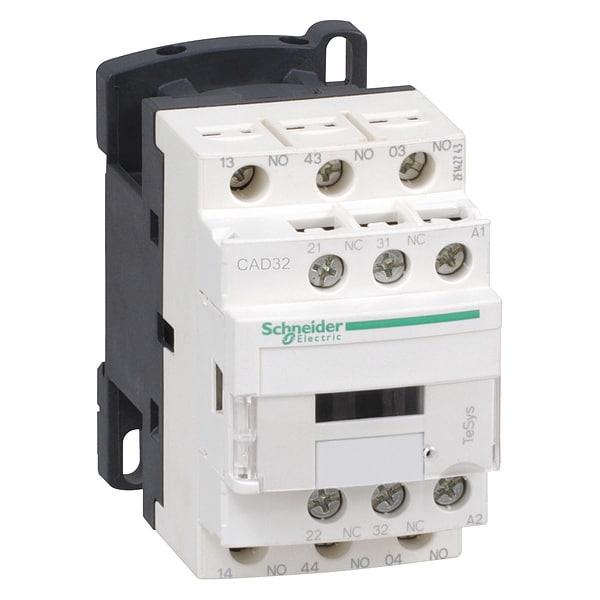

Relé de control TeSys Deca - 3 NO + 2 NC - <= 690 V - bobina estándar de 48 V DC
| Coil Volts | 600 V |
|---|---|
| Item | Relay 600V 10Amp Tesys + Options |
| Standards | EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1 |
| Device Short Name | CAD |
| Time Constant | 28 msec |
| Range | TeSys, Deca |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Minimum Switching Current | 5 mA |
| Maximum Operating Rate | 180 cyc/mn |
| Insulation Resistance | > 10 MOhm |
| Contactor Application | control circuit |
| Height | 77 mm |
| Non-Overlap Time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| Tightening Torque | 1.2 N.m screw clamp terminals Philips No 2, 1.2 N.m screw clamp terminals flat Ø 6 mm, 1.2 N.m screw clamp terminals pozidriv No 2 |
| Connections - Terminals | screw clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-4 mm²flexible without cable end, screw clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²solid without cable end, screw clamp terminals 2 1-4 mm²solid without cable end |
| Depth | 93 mm |
| Utilisation Category | DC-13, AC-14, AC-15 |
| Operating Time | 53...72 ms coil energisation and NO closing, 16...24 ms coil de-energisation and NO opening, 47...63 ms coil energisation and NC opening, 15...25 ms coil de-energisation and NC closing |
| Hold-In Power Consumption In W | 5.4-5.4 W 20°C |
| Control Circuit Voltage Limits | 0.1...0.25 Uc -40-70°C drop-out DC, 0.7...1.25 Uc -40-60°C operational DC, 1...1.25 Uc 60-70°C operational DC |
| Inrush Power In W | 5.4-5.4 W 20°C) |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947-5-1 |
| Ip Degree of Protection | IP2X front face VDE 0106 |
| Mechanical Durability | 30 Mcycles |
| Ambient Air Temperature For Operation | -40-60°C, 60-70°C with derating |
| Product Name | TeSys CAD |
| [Icw] Rated Short-Time Withstand Current | 100 A to 1 sec, 120 A to 500 msec, 140 A to 100 msec |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Mounting Support | plate, rail |
| [Uc] Control Circuit Voltage | 48 V DC |
| [Ue] Rated Operational Voltage | <= 690 V AC 25...400 Hz |
| Mechanical Robustness | shocks control relay open10 Gn for 11 ms IEC 60068-2-27, shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6 |
| Protective Treatment | TH IEC 60068 |
| Width | 45 mm |
| Irms Rated Making Capacity | 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1 |
| Minimum Switching Voltage | 17 V |
| Pole Contact Composition | 3 NO + 2 NC |
| Control Circuit Type | DC standard |
| Ambient Air Temperature For Storage | -60-80°C |
| [Ui] Rated Insulation Voltage | 600 V UL, 600 V CSA, 690 V IEC 60947-5-1 |
| Product or Component Type | control relay |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) |
| Product Certifications | CB Scheme || CCC || UL || CSA || EAC || CE || UKCA |
| Rated Short Time Withstand Current | 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms |
| Rated Operational Voltage | Less than or Equal to 690 V AC 25 to 400 Hz |
| Rated Insulation Voltage | 600 V UL; 600 V CSA; 690 V IEC 60947-5-1 |
| Package Quantity | 1 |
