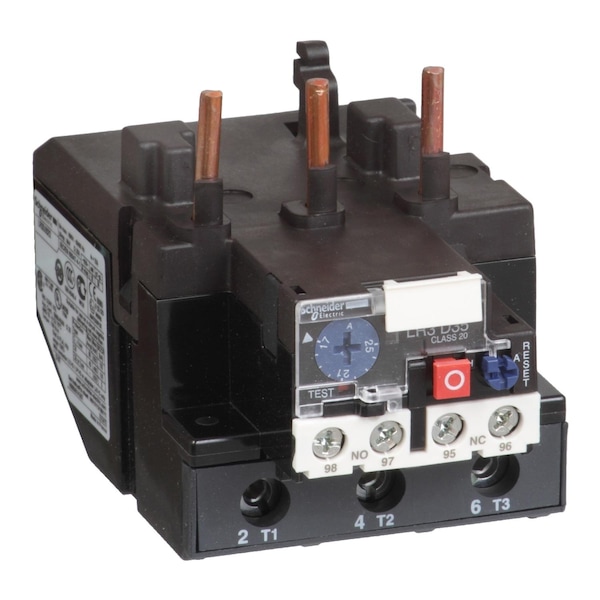

Relés de sobrecarga térmica TeSys Deca, 23...32A, clase 20.
| Item | 2332A Class 20 Iec Overload Relay |
|---|---|
| Width | 75 mm |
| Depth | 121 mm |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5 |
| Product Name | Deca, TeSys, TeSys LRD |
| Network Frequency | 0...400 Hz |
| Thermal Protection Adjustment Range | 23 to 32 A |
| Ip Degree of Protection | IP20 conforming to IEC 60529 |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Climatic Withstand | IACS E10 |
| Associated Fuse Rating | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
| Flame Retardance | V1 conforming to UL 94 |
| Thermal Overload Class | class 20 IEC 60947-4-1 |
| Mechanical Robustness | vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7 |
| [Ue] Rated Operational Voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| Product Compatibility | LC1D80, LC1D95 |
| Control Type | Red push-button stop, Blue push-button reset |
| Ambient Air Temperature For Storage | -60-70°C |
| Product or Component Type | non differential thermal overload relay |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals, power circuit 9 N.m screw clamp terminals |
| Temperature Compensation | -20-60°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Network Type | AC, DC |
| Device Short Name | LR3D |
| Range | TeSys |
| Connections - Terminals | power circuit screw clamp terminals 1 4-35 mm² flexible without cable end, power circuit screw clamp terminals 1 4-35 mm² flexible with cable end, power circuit screw clamp terminals 1 4-35 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end |
| Relay Application | motor protection |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| [Ui] Rated Insulation Voltage | power circuit 1000 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL |
| Mounting Support | plate, with specific accessories, rail, with specific accessories, under contactor |
| [Ith] Conventional Free Air Thermal Current | 5 A (signalling circuit) |
| Ambient Air Temperature For Operation | -20-60°C without derating IEC 60947-4-1 |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Product Certifications | IEC || UL || CSA || CCC || EAC || BV || DNV-GL || LROS (Lloyds register of shipping) || UKCA |
| Package Quantity | 1 |
