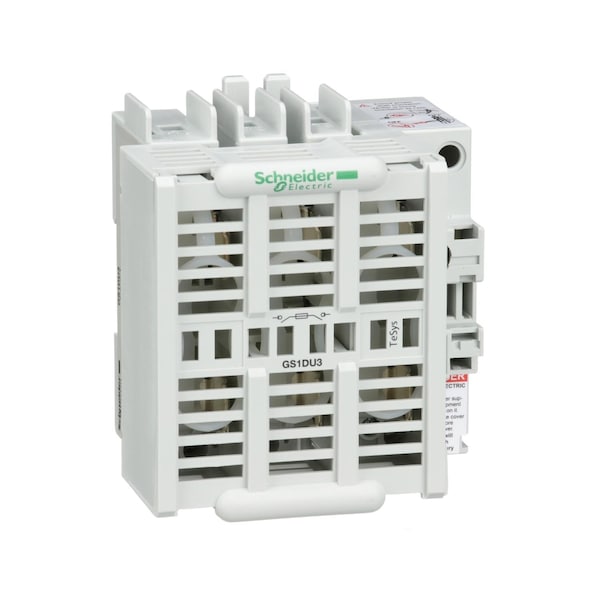

TeSys GS, interruptor de desconexión, fusible, 3 P, 600 V, UL 30 A, fusible tipo J.
| Item | TeSys GS,disconnect switch,fuse,3 P, |
|---|---|
| Depth | 99 mm |
| Height | 116 mm |
| Width | 105 mm |
| Standards | CSA C22.2 No 5 || UL 489 |
| Mounting Support | plate || rail |
| Rated Operational Power In W | 15 kW 400 V || 18.5 kW 500 V || 25 kW 690 V |
| Product Certifications | LOVAG || LROS || ASEFA |
| Protected Poles Description | 3t |
| Network Frequency | 50/60 Hz |
| Tightening Torque | power circuit 3-3 N.m |
| Device Application | protection |
| Network Type | AC || DC |
| Design | compact |
| [Ui] Rated Insulation Voltage | 690 V |
| Fuse Size | J |
| Ambient Air Temperature For Storage | -40-80°C |
| Electrical Durability | 6000 cycles |
| Mechanical Durability | 10,000 cycle |
| Ambient Air Temperature For Operation | -20-70°C |
| Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
| Product Or Component Type | switch-disconnector-fuse |
| Fire Resistance | 960°C body IEC 60695-2-1 |
| [Ith] Conventional Free Air Thermal Current | 30 A 40°C |
| Poles Description | 3P |
| Short-Circuit Withstand | 5.5 kA |
| Product Name | TeSys GS |
| Range | TeSys |
| [Ie] Rated Operational Current | 30 A |
| Fuse Type | UL |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Type Of Operating Handle | external frontal |
| Device Short Name | GS1D |
| Connections - Terminals | power circuit lugs-ring terminals 2-6 mm² |
| Contacts Type And Composition | 3 NO |
| Package Quantity | 1 |
