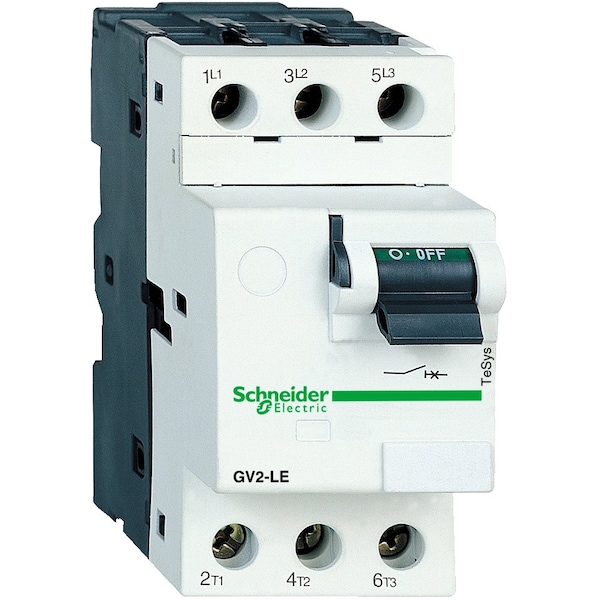

Arrancador manual y protector TeSys GV2, protector de circuito magnético, interruptor de palanca, 10 A, terminales de sujeción por tornillo.
| Depth | 78.5 mm |
|---|---|
| Height | 89 mm |
| Item | Manual Switch 600Vac 10Amp Iec |
| Width | 45 mm |
| Standards | EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 |
| Color | Dark Grey |
| Mechanical Durability | 100,000 cycle |
| Climatic Withstand | IACS E10 |
| Ambient Air Temperature For Operation | -20-60°C |
| Mechanical Robustness | shocks 30 Gn for 11 ms || vibrations 5 Gn, 5 to 150 Hz |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Utilisation Category | category A IEC 60947-2 || AC-3 IEC 60947-4-1 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Product Name | TeSys GV2 |
| Rated Duty | continuous IEC 60947-4-1 |
| [Ics] Rated Service Short-Circuit Breaking Capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2 |
| Product Certifications | CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA || IECEE CB Scheme |
| Motor Power Kw | 3-3 kW 400/415 V AC 50/60 Hz || 4-4 kW 400/415 V AC 50/60 Hz || 4-4 kW 500 V AC 50/60 Hz || 5.5-5.5 kW 500 V AC 50/60 Hz || 5.5-5.5 kW 690 V AC 50/60 Hz || 7.5-7.5 kW 690 V AC 50/60 Hz |
| Fixing Mode | 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate) |
| Electrical Durability | 100000 cycles AC-3 415 V In |
| Poles Description | 3P |
| Magnetic Tripping Current | 138-138 A |
| Product Or Component Type | motor circuit breaker |
| Breaking Capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 10 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Network Frequency | 50/60 Hz IEC 60947-2 |
| Line Rated Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| Operating Altitude | 6,561.68 ft |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-4-1 |
| Device Short Name | GV2LE |
| Control Type | toggle |
| Tightening Torque | 1.7 N.m screw clamp terminal |
| Device Application | motor protection |
| Ambient Air Temperature For Storage | -40-80°C |
| Trip Unit Technology | magnetic |
| Ik Degree Of Protection | IK04 |
| Power Dissipation Per Pole | 1.8 W |
| Fire Resistance | 960°C IEC 60695-2-11 |
| Range | TeSys Deca |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-1§ 7-1-6 |
| Network Type | AC |
| Package Quantity | 1 |
