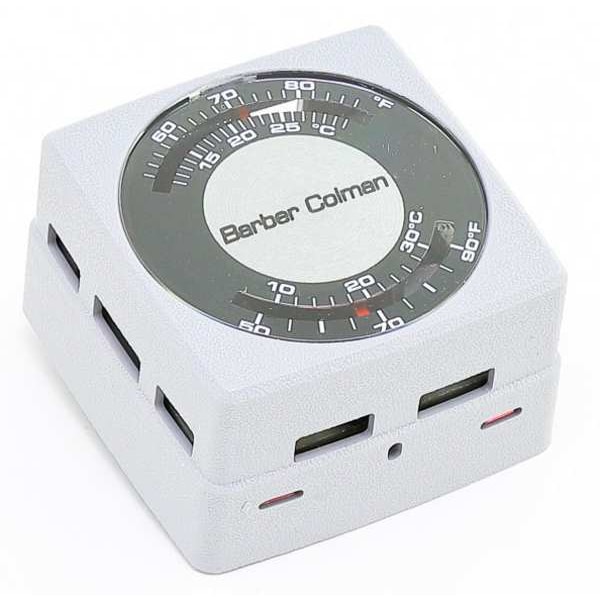

Thermostat, 2 Pipe, 50/90 Deg F
| Item | Pneumatic Thermostat |
|---|---|
| Includes | 20-693 Tubing Kit, Mounting Kit |
| Fits Brand | Schneider Electric |
| Application | Heat or Cool |
| Sensor Type | Bi-Metallic Spring |
| Air Connection Outside Diameter | 1/4 in |
| Maximum Air Pressure | 30 psig |
| Overall Width | 2-1/16 in |
| Overall Depth | 1-3/8 in |
| Mounting Direction/Includes Cover | Horizontal/Vertical, Yes |
| Air Consumption | 15.6 scim |
| Temperature Scale | Fahrenheit, Celsius |
| Cover Color | Gray |
| Number of Dials | Single |
| Fitting Connection | Barbed 3/16 in |
| Mounting Direction | Horizontal, Vertical |
| Maximum Control Temperature | 85 deg F |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Temperature Control Range | 55 to 85 deg F |
| Minimum Control Temperature | 55 deg F |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Throttling Range | 2 Degrees to 12 Degrees F |
| Air Flow Output | High Volume |
| Thermostat Action | Direct |
| Overall Height | 2-1/16 in |
| Number of Pipes | 2 |
| Manual Indexing Switch | No |
| Temperature Settings | Single Temperature |
| Differential Type | Adjustable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
