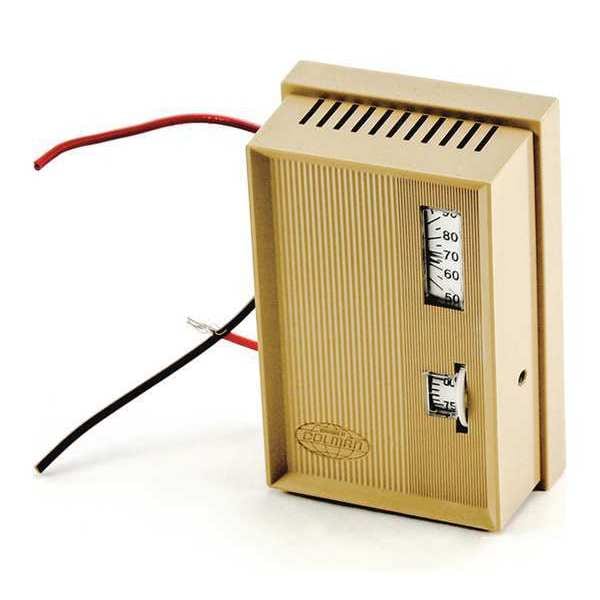

Thermostat, 55-85 Deg F, Spd T, 2 Position
| Voltage | 24/120/240VAC |
|---|---|
| For Use With | Heating/Cooling Systems |
| Phase | 1, 3 |
| Item | Thermostat, 55-85 Degrees F, Speed T, 2 Position |
| Standards | UL Listed |
| Switch Type | SPDT |
| Application | Heat/Cool Systems |
| Overall Width | 2-7/8 in |
| Overall Depth | 1-5/8 in |
| Overall Height | 4-3/8 in |
| Temperature Control Range | 55 to 85 deg F |
| Enclosure NEMA Rating | 1 |
| System Settings | Auto-Heat-Cool-On, Off |
| Contact Type | Snap Action |
| Temperature Differential | 2 Degrees F (1 Degrees C) On Cool; 2 Degrees F (1 Degrees C) On Heat; 2 Degrees F (1 Degrees C) On Neutral |
| Thermostat Type | Voltage |
| Sensor Type | Bi-Metal |
| Pilot Duty Rating | 210 A (120/240 VAC), 40 A (24 VAC) |
| Maximum Control Temperature | 85 deg F |
| Minimum Control Temperature | 55 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
