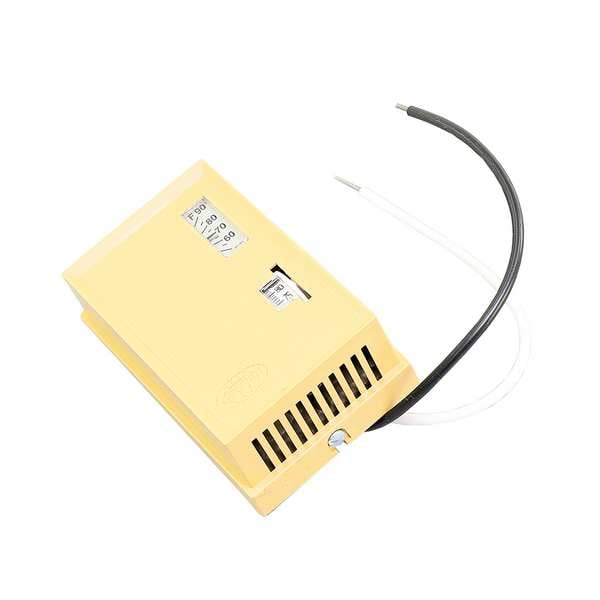

Thermostat, 55-85 DegF, 2 Pipe, Rvrs Acting
| Item | Thermostat, 55-85 Degrees F, 2 Pipe, Rvrs Acting |
|---|---|
| Includes | Pneumatic Valves; Damper Actuators |
| Features | Dial Markings: 55F to 85F |
| Application | Heat or Cool |
| Temperature Scale | Fahrenheit |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Air Flow Capacity | 16 scim |
| Overall Depth | 1-5/8 in |
| Sensor Type | Bi-Metallic Spring |
| Temperature Control Range | 55 to 85 deg F |
| Cover Color | Beige |
| Air Flow Output | High Volume |
| Fitting Connection | 5/32 in |
| Air Connection Outside Diameter | 1/8 in |
| Air Consumption | 13.8 scim |
| Mounting Direction/Includes Cover | Vertical, Yes |
| Minimum Control Temperature | 55 deg F |
| Temperature Settings | Single Temperature |
| Maximum Control Temperature | 85 deg F |
| Number of Pipes | 2 |
| Operating Humidity Range | 0% to 98% RH |
| Maximum Air Pressure | 30 psig |
| Manual Indexing Switch | Yes |
| Throttling Range | 2 to 10 deg F |
| Action | Reverse |
| Number of Dials | Single |
| Overall Width | 2-3/4 in |
| Differential Type | Adjustable |
| Mounting Direction | Vertical |
| Overall Height | 4-3/8 in |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Thermostat Action | Reverse |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
