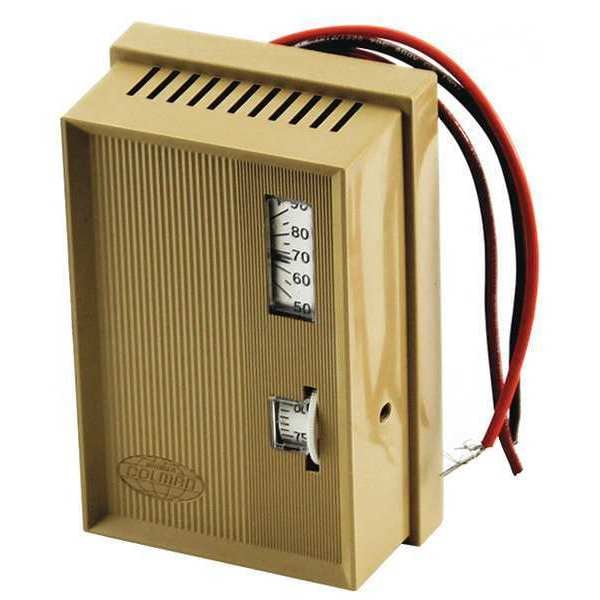

Thermostat, 55-85 Degrees F, Speed T
| Voltage | 24/120/240VAC |
|---|---|
| For Use With | Heating/Cooling Systems |
| Item | Thermostat, 55-85 Degrees F, Speed T |
| Phase | 1, 3 |
| Includes | (2) Dial Stop Pins to Limit Setpoint Range, (2) Mounting Screws, 5/64 in Allen Head Screw for Securing Cover to Thermostat Base, 5/64 in Allen Wrench, Blank Cover Insert, Cover Insert with Setpoint Dial Output |
| Standards | CSA, UL |
| Switch Type | SPDT |
| Application | Heat and Cool |
| Control Type | Selector Dial |
| Includes Batteries | Yes |
| Contact Rating | 24/120V AC, 240V AC |
| Electrical Connection Type | Hardwired |
| Overall Depth | 4-3/8 in |
| Battery Type | Digital Thermometer Battery |
| Compatible System Type | Fan Coils Low/Line Voltage On-Off Control, Fans Motor Starters, Two-Position Electric Actuators |
| System Settings | On-Off |
| Contact Type | Snap Action |
| System/Fan Settings | On-Off, Low-On-Off |
| Maximum Control Temperature | 85 deg F |
| Temperature Control Range | 55 to 85 deg F |
| Temperature Limiting | Yes |
| Overall Height | 4-3/8 in |
| Minimum Control Temperature | 55 deg F |
| Operating Temperature Range | 55 to 85 deg F |
| Lead Length | 6 in |
| Temperature Differential | 2 deg F |
| Pilot Duty Rating | 210 VA @ 120/240V AC, 40 VA @ 24V AC |
| Overall Width | 2-7/8 in |
| Fan Settings | Low-On-Off |
| Housing Color | Beige |
| Temperature Scale | Fahrenheit |
| Full Load Amps @ 240V AC | 2.2 A |
| Thermostat Type | Voltage |
| Number of Switches | 1 |
| Product Type | Thermostat |
| Number of Poles | 1 |
| Shape | Rectangle |
| Temperature Readout | Yes |
| Locked Rotor Amps @ 240V | 13.2 A |
| Housing Material | Plastic |
| Locked Rotor Amps @ 120V | 4.4 A |
| Full Load Amps @ 120V AC | 4.4 A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
