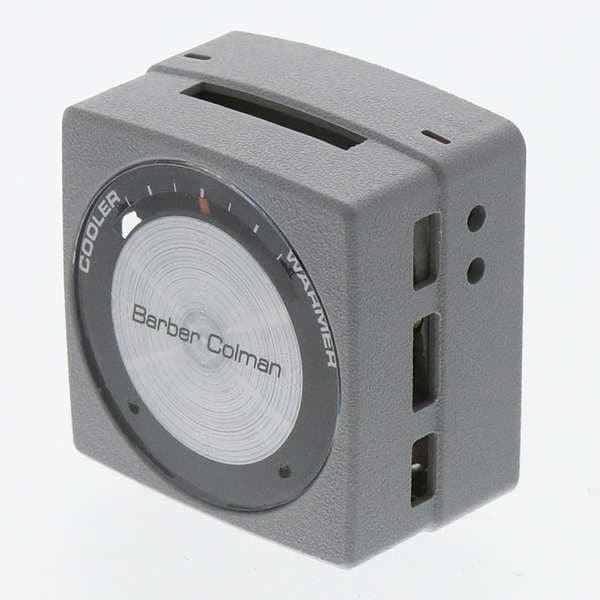

Thermostat, Unit Vent, 65-85 Degrees F
| For Use With | Pneumatic Devices and Actuators in Environmental Control Systems; Induction Units; Fan Coil Units; Unit Ventilators |
|---|---|
| Item | Thermostat, Unit Vent, 65-85 Degrees F |
| Includes | 20-818 Mounting Bracket with Screws; Remote Bimetal Sensors |
| Application | Heat or Cool |
| Overall Width | 2-1/16 in |
| Temperature Settings | Single Temperature |
| Manual Indexing Switch | No |
| Pneumatic Thermostat Type/Indexing Switch | Remote Reset |
| Differential Type | Fixed |
| Overall Height | 2-1/16 in |
| Minimum Control Temperature | 65 deg F |
| Air Connection Outside Diameter | 1/4 in |
| Air Consumption | 29.4 scim |
| Action | Direct |
| Maximum Control Temperature | 85 deg F |
| Number of Pipes | 3 |
| Temperature Scale | Fahrenheit |
| Overall Depth | 1-3/8 in |
| Temperature Control Range | 65 to 85 deg F |
| Sensor Length | 200 ft |
| Pneumatic Thermostat Type | Remote Reset |
| Number of Pipes/Air Flow Output | 3 Pipes, High Volume |
| Temperature Sensitivity | 2.5 psig/ Degrees F |
| Mounting Direction/Includes Cover | Horizontal/Vertical, Yes |
| Thermostat Action | Direct |
| Sensor Location | Remote |
| Maximum Air Pressure | 30 psig |
| Sensor Type | Bi-Metallic Spring |
| Fitting Connection | 1/4 in |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Air Flow Output | High Volume |
| Number of Dials | Single |
| Mounting Direction | Vertical, Horizontal |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
