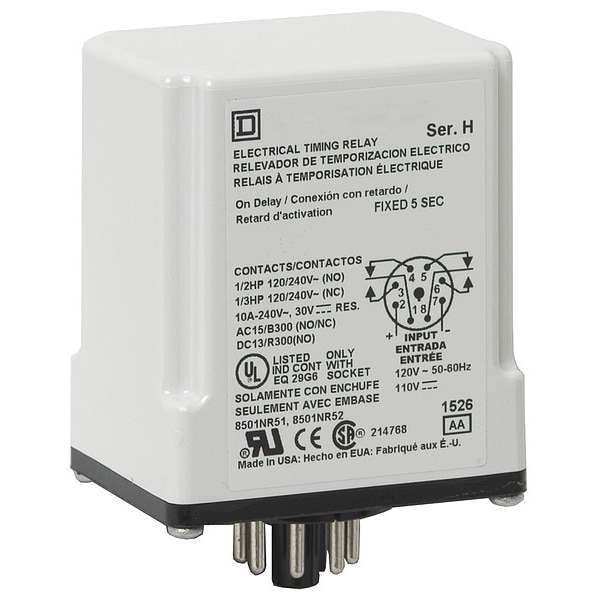

Relé de retardo de tiempo, 120V de corriente continua, con 8 pines.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | On Delay |
| Input or Control Voltage | 120 V AC || 110 V DC |
| Coil Volts | 110V DC, 120V AC |
| AC Contact Rating - Relay | 10A @ 120V |
| DC Contact Rating - Relay | 10 A @ 110 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Mounting - Relay | Plug In |
| Min. Time Setting - Timer | 3 sec |
| Contact Form - Relay | DPDT |
| Power Consumption - Relay | 2 VA |
| Contact Material | Silver Nickel |
| Socket Code | A |
| Depth | 104 mm |
| Body Depth - Relay | 4.09 in |
| Body Width - Relay | 1.69 in |
| Adjustment Method | Not Applicable |
| Electrical Connection | Socket |
| Standards | CE Certified, CSA Certified, UL Listed, UL Recognized |
| Item | Time Delay Relay |
| Body Height - Relay | 2.4 in |
| Hz - Electrical | 50 Hz, 60 Hz |
| Contact Form | DPDT |
| Bezel Face Shape | tubular |
| Input Voltage | 110V AC, 120V DC |
| Socket | 2DW02, 5B586 |
| Current Rating | 10 A |
| Number of Pins | 8 |
| Body Width | 1.69 in |
| Minimum Operating Temperature | -18.4 deg F |
| Body Height | 2.4 in |
| Contact Rating (AC) | 10 A @ 120/240V |
| Delay Function | On Delay |
| Mounting Style | Plug-In |
| Minimum Time Setting | 0.1 sec |
| Base Shape | Octal |
| Overall Depth | 2.4 in |
| Body Depth | 4.09 in |
| Compatible with Manufacturer Model Number | 8501NH7, 8501NR51, 8501NR51B, 8501NR52, 8501NR52B, 9080MH220, 9080MH239, 9080MH320, 9080MH339, 9080MHA10 |
| Coil Voltage | 120V DC |
| Power Consumption | 2 VA |
| Frequency | 50/60 Hz |
| Contact Rating (DC) | 10 A @ 30 V |
| Flat Pin Width | Not Applicable |
| Maximum Operating Temperature | 150.8 deg F |
| Sealing | Sealed |
| Maximum Switching Voltage | 240 V AC |
| Number of Delay Functions | 1 |
| Maximum Time Setting | 3 sec |
| Compatible Grainger Part Number | 2DW02, 5B586 |
| Package Quantity | 1 |
