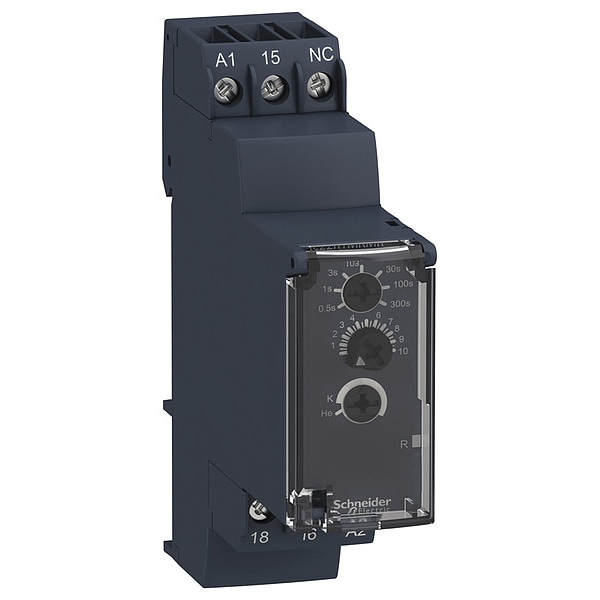

Relé de retardo de tiempo, 24 a 240V CA/CD, 6 Pines
| Item - Relay | Single Function Timing Relay |
|---|---|
| Function - Timing Relay | Off/On Delay |
| Coil Volts | 24 to 240V AC/DC |
| AC Contact Rating - Relay | 8A @ 250V |
| Number of Pins - Relay | 6 |
| Mounting - Relay | Rail |
| Adjustment Method - Timer | Knob |
| Min. Time Setting - Timer | 0.3...3 s || 0.05...0.5 s || 3...30 s || 0.1...1 s || 30...300 s || 10...100 s || 1...10 s |
| Contact Form - Relay | 1 C/O timed contact, cadmium free |
| Max. Time Setting - Timer | 5 min |
| Power Consumption - Relay | 3 VA |
| Input Voltage | 24 to 240V AC/DC |
| Input or Control Voltage Range | 0.85...1.1 Us |
| Hz - Electrical | 50 Hz, 60 Hz |
| Item | Time Delay Relay |
| Body Width - Relay | 0.89 in |
| Adjustment Method | Rotary Dip Switch |
| Type of Output | Relay |
| Contact Material | Cadmium Free |
| Contact Form | SPDT |
| Body Depth - Relay | 3.03 in |
| Standards | IEC 61812-1, UL 508 |
| Socket | Not Applicable |
| Body Height - Relay | 3.54 in |
| Electrical Connection | Screw Terminal |
| Overall Height - Relay | 3.54 in |
| Status Indicator | LED |
| Electrical Operating Durability | 100,000 |
| Mounting Style | DIN Rail |
| Delay Function | Delay On De-Energization, Pulse On De-Energization |
| Current Rating | 5 A |
| Maximum Time Setting | 5 min |
| Base Shape | Square |
| Contact Rating (DC) | 5 A @ 24 V |
| Minimum Operating Temperature | -4 deg F |
| Body Height | 3.54 in |
| Minimum Time Setting | 0.05 sec |
| Contact Rating (AC) | 5 A @ 250 V |
| Maximum Switching Voltage | 250 V AC |
| Frequency | 50/60 Hz |
| Number of Delay Functions | 2 |
| Power Consumption | 3 VA |
| Number of Pins | 6 |
| Overall Depth | 3.54 in |
| Maximum Operating Temperature | 140 deg F |
| Operating Time Accuracy | +/-0.5% |
| Mechanical Operating Durability | 10,000,000 |
| Weight | 3.52 oz |
| Body Width | 0.89 in |
| IP Rating | IP20, IP40, IP50 |
| Coil Voltage | 24 to 240V AC/DC |
| Sealing | Sealed |
| Body Depth | 2.87 in |
| Package Quantity | 1 |
