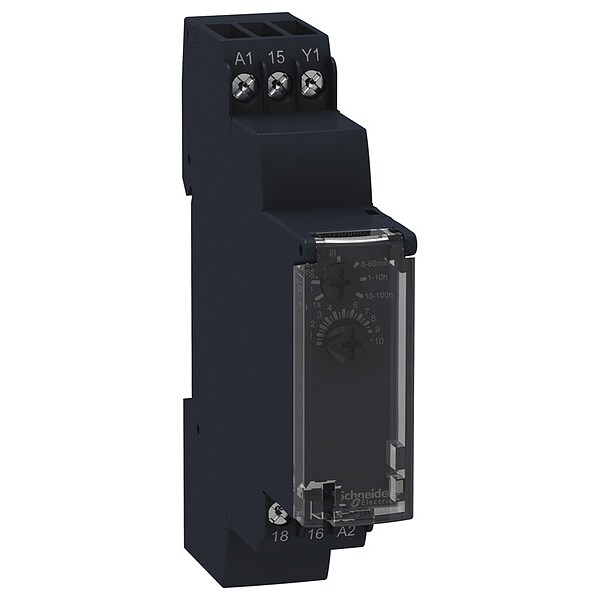

Relé de retardo de tiempo, 240V CA, 6 pines
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | On Delay |
| Coil Volts | 24 to 240V AC |
| AC Contact Rating - Relay | 0.70A @ 24/240V |
| Number of Pins - Relay | 6 |
| Adjustment Method - Timer | Dip Switch |
| Mounting - Relay | Rail |
| Min. Time Setting - Timer | 1...10 s || 1...10 h || 0.1...1 s || 6...60 s || 6...60 min || 1...10 min || 10...100 h |
| Power Consumption - Relay | 3 VA |
| Adjustment Method | Rotary Dip Switch |
| Input Voltage | 24 to 240V AC |
| Body Width - Relay | 0.69 in |
| Hz - Electrical | 50 Hz, 60 Hz |
| Input or Control Voltage Range | 0.85...1.1 Us |
| Type of Output | Solid State |
| Body Height - Relay | 3.54 in |
| Electrical Connection | Screw Terminal |
| Body Depth - Relay | 2.84 in |
| Status Indicator | LED |
| Standards | 2004/108/EC, 2006/95/EC, CSA Certified, CULus Listed, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, GL, IEC 61812-1 |
| Overall Height - Relay | 3.54 in |
| Item | Time Delay Relay |
| Contact Form | Solid State |
| IP Rating | IP20, IP40, IP50 |
| Power Consumption | 3 VA |
| Operating Time Accuracy | +/-0.5% |
| Sealing | Sealed |
| Contact Rating (DC) | Not Applicable |
| Weight | 2.4 oz |
| Mounting Style | DIN Rail |
| Base Shape | Square |
| Reset Method | Time-Limit Reset |
| Maximum Switching Voltage | 250 V AC |
| Body Width | 0.69 in |
| Delay Function | Interval |
| Current Rating | 0.7 A |
| Frequency | 50/60 Hz |
| Minimum Time Setting | 1 sec |
| Number of Pins | 6 |
| Coil Voltage | 240V AC |
| Body Height | 3.54 in |
| Overall Depth | 3.54 in |
| Contact Rating (AC) | 0.7 A @ 250 V |
| Maximum Time Setting | 100 hr |
| Minimum Operating Temperature | -4 deg F |
| Number of Delay Functions | 1 |
| Electrical Operating Durability | 100,000,000 |
| Body Depth | 2.84 in |
| Maximum Operating Temperature | 140 deg F |
| Package Quantity | 1 |
