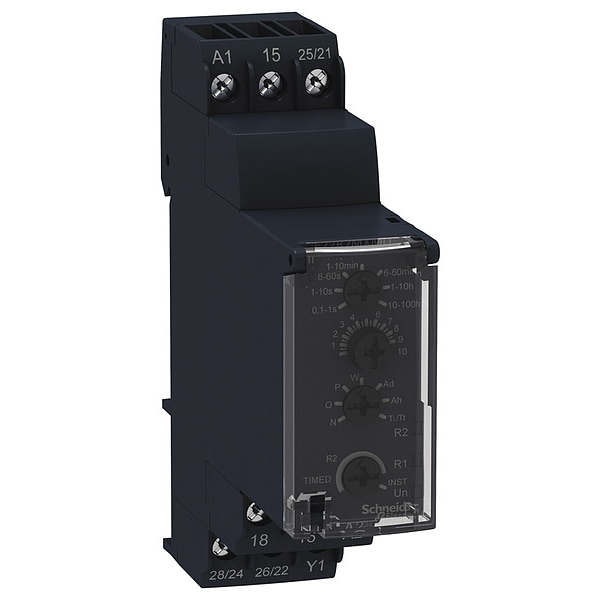

Relé de retardo de tiempo, 240V DC, 4 pines.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | Off/On Delay |
| Coil Volts | 24 to 240V AC, 24V DC |
| AC Contact Rating - Relay | 8A @ 250V |
| Number of Pins - Relay | 4 |
| Mounting - Relay | Rail |
| Adjustment Method - Timer | Knob |
| Contact Form - Relay | 1 C/O timed contact || 1 C/O timed or instantaneous contact |
| Min. Time Setting - Timer | 0.1...1 s || 1...10 h || 1...10 s || 6...60 min || 10...100 h || 6...60 s || 1...10 min |
| Max. Time Setting - Timer | 4 days 4 hr |
| Power Consumption - Relay | 50-50 VA 240 V AC; 0.7 W 24 V DC |
| Status Indicator | LED |
| Body Depth - Relay | 3.29 in |
| Type of Output | Relay |
| Input Voltage | 24 to 240V DC, 24V AC |
| Input or Control Voltage Range | 0.85...1.1 Us |
| Standards | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, IEC 61812-1 |
| Electrical Connection | Screw Terminal |
| Contact Material | Cadmium Free |
| Body Height - Relay | 3.54 in |
| Min. On/Off Pulse | 30 ms || 100 ms under load |
| Contact Form | DPDT |
| Body Width - Relay | 0.89 in |
| Socket | Not Applicable |
| Adjustment Method | Rotary Dip Switch |
| Item | Time Delay Relay |
| Overall Height - Relay | 3.54 in |
| Hz - Electrical | 50 Hz, 60 Hz |
| Flat Pin Width | Not Applicable |
| Maximum Time Setting | 100 hr |
| Base Shape | Not Applicable |
| Body Width | 0.89 in |
| Maximum Operating Temperature | 140 deg F |
| Maximum Switching Voltage | 250 V |
| Frequency | 50/60 Hz |
| Operating Time Accuracy | +/-0.5% |
| Sealing | Sealed |
| Contact Rating (DC) | 8 A @ 24 V |
| Body Depth | 3.13 in |
| Contact Rating (AC) | 8 A @ 250 V |
| Number of Delay Functions | 4 |
| Overall Depth | 3.54 in |
| Power Consumption | 50 VA |
| Body Height | 3.54 in |
| Electrical Operating Durability | 100,000 |
| Coil Voltage | 240V DC |
| Number of Pins | 4 |
| Minimum Operating Temperature | -4 deg F |
| Current Rating | 8 A |
| Mechanical Operating Durability | 10,000,000 |
| Delay Function | Bistable, Interval, Pulse Delay, Safe-Guard |
| Weight | 3.2 oz |
| IP Rating | IP20, IP40, IP50 |
| Mounting Style | DIN Rail |
| Minimum Time Setting | 0.1 sec |
| Package Quantity | 1 |
