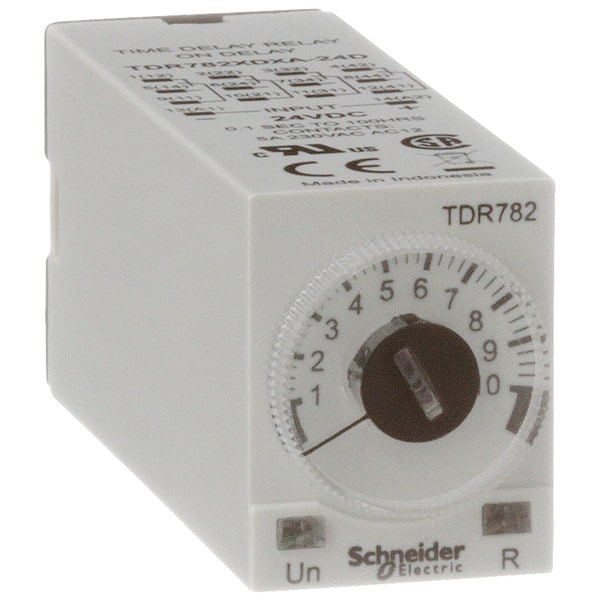

Relé de retardo de tiempo, 24VDC, 3A, 4PDT, 0.1 seg.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Relay | Single Function Timing Relay |
| Function - Timing Relay | On Delay |
| Coil Volts | 24V DC |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Mounting - Relay | Plug In |
| Adjustment Method - Timer | Dip Switch, Knob |
| Contact Form - Relay | 4PDT |
| Min. Time Setting - Timer | 0.1 sec |
| Max. Time Setting - Timer | 4 days 4 hr |
| Power Consumption - Relay | 1.2 W |
| Overall Height - Relay | 2.44 in |
| Socket | 1EGP7, 1EGP8, 1EGR1, 2A584 |
| Status Indicator | LED |
| Function | On Delay |
| Coil Rating | 1.2 W |
| Socket Code | G |
| Base Type | Square |
| Adjustment Method | Dip Switch, Rotary Knob |
| Body Depth - Relay | 1 in |
| Electrical Connection | Socket |
| Hz | 50/60 |
| Contact Material | Silver Alloy |
| Hz - Electrical | 50 Hz, 60 Hz |
| Max. Time Setting | 100 hr |
| Standards | CSA Certified, cURus, IEC 61810-1 |
| Operating Functions | 1 |
| Body Width - Relay | 0.8 in |
| Pins | 14 |
| Min. Time Setting | 0.1 sec |
| Body Height - Relay | 2.3 in |
| Contact Form | 4PDT |
| Item | Single Function Time Delay Relay |
| Mounting | plug In |
| Contact Amp Rating (Resistive) | 3 A |
| Input Voltage | 24V DC |
| Depth | 1.06 in |
| Width | 0.83 in |
| Minimum Operating Temperature | -4 deg F |
| Body Height | 3.1 in |
| Reset Method | Time-Limit Reset |
| Number of Pins | 14 |
| Number of Delay Functions | 1 |
| IP Rating | IP50 |
| Electrical Operating Durability | 100,000 |
| Power Consumption | 1.2 W |
| Coil Voltage | 24V DC |
| Contact Rating (DC) | 3 A @ 24 V |
| Contact Rating (AC) | Not Applicable |
| Maximum Operating Temperature | 140 deg F |
| Mounting Style | Plug-In |
| Body Width | 1.1 in |
| Current Rating | 5 A |
| Delay Function | On Delay |
| Overall Depth | 4.04 in |
| Frequency | 50/60 Hz |
| Sealing | Sealed |
| Body Depth | 2.4 in |
| Maximum Time Setting | 100 hr |
| Mechanical Operating Durability | 10,000,000 |
| Flat Pin Width | 0.105 in |
| Operating Time Accuracy | +/-0.5% |
| Compatible with Manufacturer Model Number | 16-700DIN, 16-782F2-1, 16-DCLIP-1, 16-TDR782SC, 70-378-1, 70-379-1, 70-782E14-170-782D14-170-461-1, 70-782EL14-1 |
| Minimum Time Setting | 0.1 sec |
| Base Shape | Square |
| Weight | 1.76 oz |
| Temperature Drift | +/- 0.05 %/°C |
| IP Degree of Protection | IP50 IEC 60529 enclosure) |
| Electrical Durability | 100000 cycles |
| Product Range | Legacy |
| Ambient Air Temperature for Storage | -40 to 158°F |
| Mechanical Durability | 10000000 cycles |
| Power consumption in W | 1.2 W 24 V |
| Ambient Air Temperature for Operation | -4 to 140°F (-20 to 60°C) |
| Nominal Output Current | 0.125 |
| Repeat Accuracy | +/- 0.5 % - 5...5 % |
| Mounting Support | Socket |
| Control Type | Dial front |
| Product Certifications | CSA, cURus |
| Contacts Material | Silver alloy contacts |
| Voltage Range | 0.9...1.1 Un |
| Rated Supply Voltage | 24 V DC |
| Time Delay Type | A |
| Reset Time | 50 ms maximum |
| Dielectric Strength | 2000 V between input and output |
| Height | 2.34 in |
| Time Delay Range | 100 ms...1 s; 1...10 s; 0.1...1 min; 1...10 min; 0.1...1 h; 1...10 h; 10...100 h |
| Local Signalling | 1 LED amber output status; 1 LED green input status |
| Product Type | Time delay relay |
| Package Quantity | 1 |
