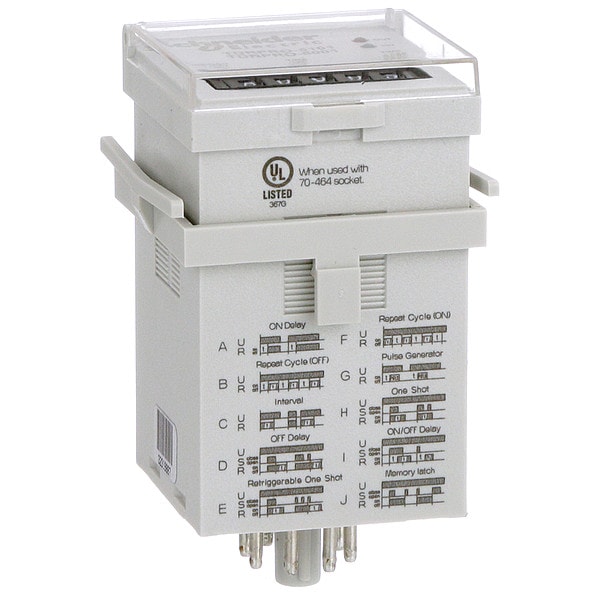

Relé de retardo de tiempo, 12 a 240VCA/CD, 12A, SPDT
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | Interval (Power On), Memory Hold (S Make), Off Delay (S Break), Off/On Delay (S Make/Break), On Delay (Power On), One Shot, Pulse Generator, Repeat Cycle (Starting Off), Repeat Cycle (Starting On), Retriggerable One Shot |
| Coil Volts | 12 to 240V AC/DC |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Adjustment Method - Timer | Thumbwheel |
| Mounting - Relay | Plug In |
| Contact Form - Relay | SPDT |
| Min. Time Setting - Timer | 0.1 sec |
| Power Consumption - Relay | 2 W, 2.5 VA |
| Max. Time Setting - Timer | 416 days 6 hr |
| Standards | IEC 61810-1, RoHS Compliant, UL Listed |
| Hz | 50/60 |
| Body Depth - Relay | 1.9 in |
| Body Width - Relay | 1.9 in |
| Coil Rating | 2.5 VA |
| Number of Functions | 10 |
| Overall Height - Relay | 3.38 in |
| Hz - Electrical | 50 Hz, 60 Hz |
| Status Indicator | LED |
| Operating Functions | 1, 2, 4, 5 |
| Contact Amp Rating (Resistive) | 12 A |
| Item | Multi-Function Time Delay Relay |
| Min. Time Setting | 0.1 sec |
| Contact Form | SPDT |
| Pins | 8 |
| Body Height - Relay | 3.15 in |
| Socket Code | A |
| Base Type | Octal |
| Function | On Delay (Power On), Repeat Cycle (Starting Off), Interval (Power On), Off Delay (S Break), Retriggerable One Shot, Repeat Cycle (Starting On), Pulse Generator, One Shot, On/Off Delay (S Make/Break), Memory Hold (S Make) |
| Max. Time Setting | 9,990 hr |
| Mounting | plug In |
| Socket | 1EGP3, 1EGP5, 5X852 |
| Electrical Connection | Socket |
| Contact Material | Silver Alloy |
| Adjustment Method | Thumb Wheel |
| Input Voltage | 12 to 240V AC/DC |
| Depth | 1.88 in |
| Width | 1.89 in |
| Coil Voltage | 240V AC |
| IP Rating | IP40 |
| Minimum Operating Temperature | 14 deg F |
| Delay Function | Interval (Power On), Memory Hold (S Make), Off Delay (S Break), On Delay (Power On), On/Off Delay (S Make/Break), One Shot, Pulse Generator, Repeat Cycle (Starting Off), Repeat Cycle (Starting On), Retriggerable One Shot |
| Operating Time Accuracy | +/-0.1% |
| Current Rating | 12 A |
| Maximum Time Setting | 9,990 hr |
| Contact Rating (DC) | 12 A @ 12 to 240V |
| Mounting Style | Through Panel |
| Number of Pins | 8 |
| Overall Depth | 4.73 in |
| Body Height | 1.9 in |
| Power Consumption | 2.5 VA |
| Electrical Operating Durability | 100,000 |
| Number of Delay Functions | 10 |
| Contact Rating (AC) | 12 A @ 12 to 240V |
| Sealing | Sealed |
| Body Width | 1.89 in |
| Maximum Operating Temperature | 131 deg F |
| Frequency | 50/60 Hz |
| Reset Method | Time-Limit Reset |
| Weight | 4.23 oz |
| Flat Pin Width | Not Applicable |
| Body Depth | 4-1/2 in |
| Mechanical Operating Durability | 10,000,000 |
| Base Shape | Octal |
| Minimum Time Setting | 0.1 sec |
| Ambient Air Temperature for Storage | -40 to 185°F |
| Power consumption in VA | 2.5 VA 12...240 V |
| Dielectric Strength | 2500 V between input and output |
| Product Range | Legacy |
| Mechanical Durability | 10000000 cycles |
| Operating Time | 25 ms |
| Voltage Range | 0.85...1.15 Un |
| Mounting Support | Socket |
| Reset Time | 150 ms maximum |
| Product Certifications | UL |
| Ambient Air Temperature for Operation | 14 to 131°F (-10 to 55°C) |
| Power consumption in W | 2 W 12...240 V |
| Motor Power HP | 1 hp 240 V AC; 0.5 hp 120 V AC |
| Local Signalling | 1 LED red, blinking timing in progress; 1 LED per input green |
| Height | 2.83 in |
| Contacts Material | Silver alloy contacts |
| Time Delay Type | Multifunction |
| Repeat Accuracy | +/- 0.1 % of the measuring range |
| Brake Release Time | 25 ms |
| Electrical Durability | 100000 cycles |
| IP Degree of Protection | IP40 IEC 60529 enclosure) |
| Time Delay Range | 100 ms...9990 hr in steps of 0.1 s; 100 ms...9990 hr in steps of 1 second; 100 ms...9990 hr in steps of 0.1 min; 100 ms...9990 hr in steps of 1 min; 100 ms...9990 hr in steps of 0.1 h; 100 ms...9990 hr in steps of 1 h; 100 ms...9990 hr in steps of 10 h |
| Rated Supply Voltage | 12...240 V AC/DC 50...60 Hz |
| Product Type | Time delay relay |
| Control Type | Dial front |
| Rated Operational Current | 12 A at 120 V AC (on resistive load); 12 A at 240 V AC (on resistive load); 12 A at 30 V DC (on resistive load) |
| Package Quantity | 1 |
