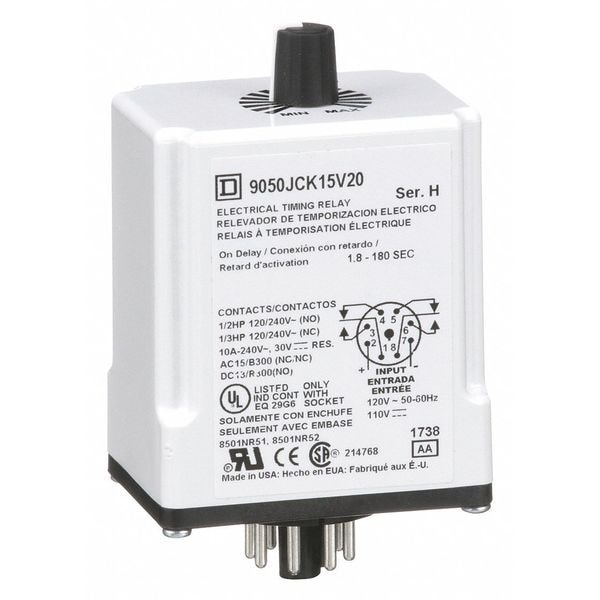

Retardo de tiempo Relé, 120VCA, 10A, DPDT, 1.8 seg., Pines: 8
| Item - Relay | Single Function Timing Relay |
|---|---|
| Function - Timing Relay | On Delay |
| Coil Volts | 120V AC |
| Input or Control Voltage | 120 V AC || 110 V DC |
| AC Contact Rating - Relay | 10A @ 120/240V |
| DC Contact Rating - Relay | 10 A @ 30 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Adjustment Method - Timer | Potentiometer |
| Mounting - Relay | Plug In |
| Min. Time Setting - Timer | 1.8 sec |
| Contact Form - Relay | DPDT |
| Power Consumption - Relay | 2 VA |
| Max. Time Setting - Timer | 3 min |
| Body Depth - Relay | 1.71 in |
| Socket Code | A |
| Body Width - Relay | 2.4 in |
| Min. Time Setting | 1.8 sec |
| Function | On Delay |
| Item | Single Function Time Delay Relay |
| Max. Time Setting | 180 sec |
| Socket | 1EGP3, 1EGP5, 5X852 |
| Mounting | plug In |
| Pins | 8 |
| Operating Functions | 1 |
| Contact Form | DPDT |
| Electrical Connection | Socket |
| Overall Height - Relay | 4.1 in |
| Contact Amp Rating (Resistive) | 10 A |
| Body Height - Relay | 3.39 in |
| Contact Material | Silver Nickel |
| Hz | 50/60 |
| Base Type | Octal |
| Adjustment Method | Rotary Knob |
| Coil Rating | 2 VA |
| Hz - Electrical | 50 Hz, 60 Hz |
| Standards | CE Certified, CSA Certified, UL Listed, UL Recognized |
| Input Voltage | 110V AC, 120V DC |
| Width | 1.69 in |
| Bezel Face Shape | tubular |
| Depth | 104 mm |
| Maximum Time Setting | 3 min |
| Maximum Operating Temperature | 150.8 deg F |
| Compatible with Manufacturer Model Number | 8501NR51, 8501NR52 |
| Frequency | 50/60 Hz |
| Delay Function | On Delay |
| Mounting Style | Plug-In |
| Contact Rating (DC) | 10 A @ 30 V |
| Maximum Switching Voltage | 240 V AC |
| Number of Delay Functions | 1 |
| Body Width | 1.72 in |
| Body Depth | 2-3/4 in |
| Overall Depth | 4.05 in |
| Number of Pins | 8 |
| Body Height | 2.34 in |
| Current Rating | 10 A |
| Flat Pin Width | Not Applicable |
| Minimum Operating Temperature | -18.4 deg F |
| Power Consumption | 2 VA |
| Coil Voltage | 110V AC |
| Contact Rating (AC) | 10 A @ 120/240V |
| Sealing | Sealed |
| Minimum Time Setting | 1.8 sec |
| Base Shape | Octal |
| Contact Composition | 2 NO + 2 NC |
| Height | 2.4 in |
| Timing Range | 1.8 to 180 sec |
| Product Type | Timer |
| Supply Voltage | 120 V AC, 110 V DC |
| Ambient Temperature Range - Operational | -18 to 150°F (-28 to 66°C) |
| Timing Mode | On-delay |
| Certifications | UL Listed, CE, UL Recognized |
| For Use With | 8501NR51; 8501NR52 |
| Package Quantity | 1 |
